TRANSMISSION BELTS AND CLUTCH (from sn 609403 to sn 665096 from 2016 to 2018)

Parts list

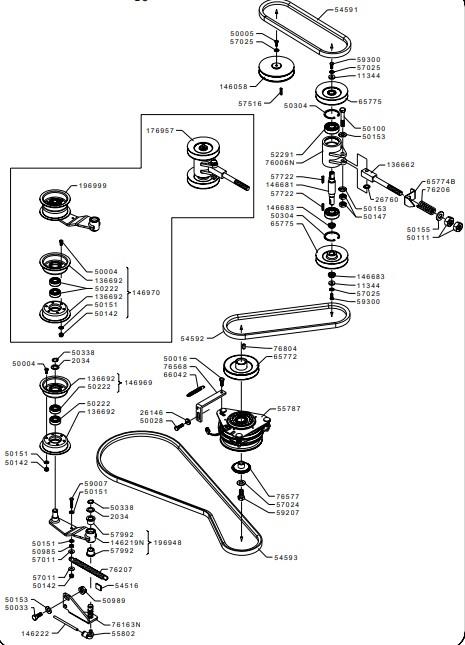

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1134411344WASHER£2.95 Add to
136662136662PIN£30.42 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
146222146222PIPE£3.55 Add to
146681146681SHAFT£48.36 Add to
146683146683SPACER£2.32 Add to
146969146969GUIDE PULLEY£19.13 Add to
146970146970GUIDE PULLEY£33.16 Add to
176957176957BACK GEAR£366.23 Add to
196999196999GUIDE PULLEY£99.15 Add to
20342034SPACER£3.02 Add to
2614626146WASHER£3.64 Add to
2676026760SPACER£2.87 Add to
275910275910SUPPORT£40.55 Add to
500030500030ELECTORMAGN. CLUTCH KIT£438.09 Add to
5000450004SCREW£1.36 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5010050100SCREW£2.04 Add to
5011150111NUT£1.90 Add to
5014250142NUT£1.32 Add to
5014750147NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015350153WASHER£1.34 Add to
5015550155WASHER£1.42 Add to
5022250222BEARING£8.85 Add to
5030450304CIRCLIP£2.09 Add to
5033850338CIRCLIP£1.42 Add to
5098550985NUT£1.30 Add to
5098950989NUT£1.59 Add to
5229152291BEARING£17.96 Add to
5451654516PAD£1.66 Add to
5459154591BELT£39.11 Add to
5459254592BELT£39.63 Add to
5459354593BELT£58.88 Add to
5580255802ADAPTOR 90°£12.54 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5702557025WASHER£1.34 Add to
5751657516FEATHER KEY£1.10 Add to
5772257722FEATHER KEY£1.32 Add to
5799257992BUSHING£4.56 Add to
5900759007SCREW£1.40 Add to
5920759207SCREW£3.97 Add to
5930059300SCREW£1.49 Add to
6577265772ENGINE PULLEY 0113 CLS9£57.33 Add to
65774B65774BBELT TENSION INDICATOR£7.48 Add to
6577565775PULLEY£64.80 Add to
6604266042SPRING£8.52 Add to
76006N76006NBODY£57.95 Add to
7620676206SPRING BELT STRECHER£10.43 Add to
7620776207SPRING£11.13 Add to
7656876568CLUTCH LOCK PLATE£10.31 Add to
7657776577WASHER£19.69 Add to
7680476804FEATHER KEY£2.71 Add to
