TRANSMISSION BELTS AND CLUTCH (from sn 711701 from 2021)

Parts list

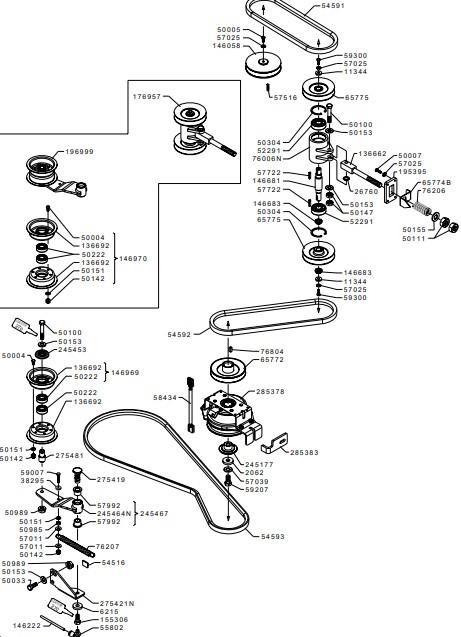

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1134411344WASHER£2.95 Add to
136662136662PIN£30.42 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
146222146222PIPE£3.55 Add to
146681146681SHAFT£48.36 Add to
146683146683SPACER£2.32 Add to
146970146970GUIDE PULLEY£33.16 Add to
155306155306SCREW£13.02 Add to
176957176957BACK GEAR£366.23 Add to
195395195395REINFORCEMENT£8.49 Add to
196999196999GUIDE PULLEY£99.15 Add to
20622062WASHER£3.77 Add to
245177245177WASHER£11.49 Add to
245453245453COVER£5.58 Add to
245467245467BELT TIGHTENER SUPPORT+BUSHING£45.46 Add to
2676026760SPACER£2.87 Add to
275419275419PIN£15.62 Add to
275421N275421NSUPPORT£11.78 Add to
275481275481BUSHING£5.42 Add to
285378285378CLUTCH£407.46 Add to
285383285383CLUTCH LOCK PLATE£6.79 Add to
3829538295WASHER£3.43 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000750007SCREW£1.50 Add to
5003350033SCREW£1.66 Add to
5010050100SCREW£2.04 Add to
5011150111NUT£1.90 Add to
5014250142NUT£1.32 Add to
5014750147NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015350153WASHER£1.34 Add to
5015550155WASHER£1.42 Add to
5030450304CIRCLIP£2.09 Add to
5098550985NUT£1.30 Add to
5098950989NUT£1.59 Add to
5229152291BEARING£17.96 Add to
5451654516PAD£1.66 Add to
5459154591BELT£39.11 Add to
5459254592BELT£39.63 Add to
5459354593BELT£58.88 Add to
5580255802ADAPTOR 90°£12.54 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5703957039WASHER£1.97 Add to
5751657516FEATHER KEY£1.10 Add to
5772257722FEATHER KEY£1.32 Add to
5799257992BUSHING£4.56 Add to
5843458434ELECTRIC CABLE£10.42 Add to
5900759007SCREW£1.40 Add to
5920759207SCREW£3.97 Add to
5930059300SCREW£1.49 Add to
62156215WASHER£4.15 Add to
6577265772ENGINE PULLEY 0113 CLS9£57.33 Add to
65774B65774BBELT TENSION INDICATOR£7.48 Add to
6577565775PULLEY£64.80 Add to
76006N76006NBODY£57.95 Add to
7620676206SPRING BELT STRECHER£10.43 Add to
7620776207SPRING£11.13 Add to
7680476804FEATHER KEY£2.71 Add to
