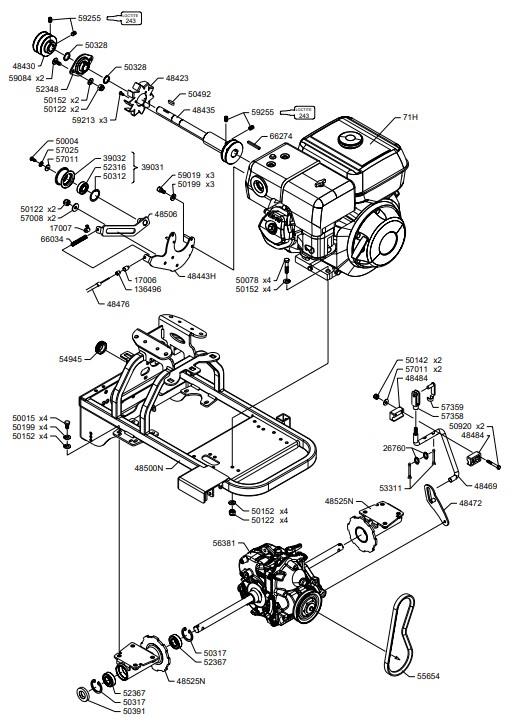

TRANSMISSION ENGINE - HYDR. AXLE (from sn 714949 from 2021)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136496136496BOOT£2.53 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
2676026760SPACER£2.87 Add to
3903139031GUIDE PULLEY£13.51 Add to
4842348423BLOWER£13.87 Add to
4843048430PULLEY£34.68 Add to
4843548435EXTENSION£130.01 Add to
48443H48443HSUPPORT£39.88 Add to
4846948469HOPPER FRAME TUBE,REAR£52.45 Add to
4847248472BRACKET£9.53 Add to
4847648476WIRE£8.67 Add to
4848448484BLOCK£2.60 Add to
48500N48500NFRAME£395.22 Add to
4850648506LEVER£13.87 Add to
48525N48525NFLANGE CONNECTION£78.22 Add to
5000450004SCREW£1.36 Add to
5001550015SCREW£1.44 Add to
5007850078SCREW£1.69 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5031250312CIRCLIP£1.71 Add to
5031750317CIRCLIP£1.97 Add to
5032850328CIRCLIP£1.44 Add to
5039150391SEAL RING£2.73 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5092050920SCREW£1.45 Add to
5231652316BEARING£8.54 Add to
5234852348BEARING£32.94 Add to
5236752367BEARING£4.83 Add to
5331153311SPLIT PIN£1.40 Add to
5494554945CABLE CHOCK£1.81 Add to
5565455654BELT£48.54 Add to
5638156381HYDROS. TRANSMISSION GH£1,311.24 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5735857358YOKE£6.63 Add to
5735957359CLIP£3.45 Add to
5901959019SCREW£1.56 Add to
5908459084SCREW£1.69 Add to
5921359213SCREW£1.42 Add to
5925559255ALLEN SCREW£0.23 Add to
6603466034SPRING£2.03 Add to
6627466274FEATHER KEY£7.43 Add to
