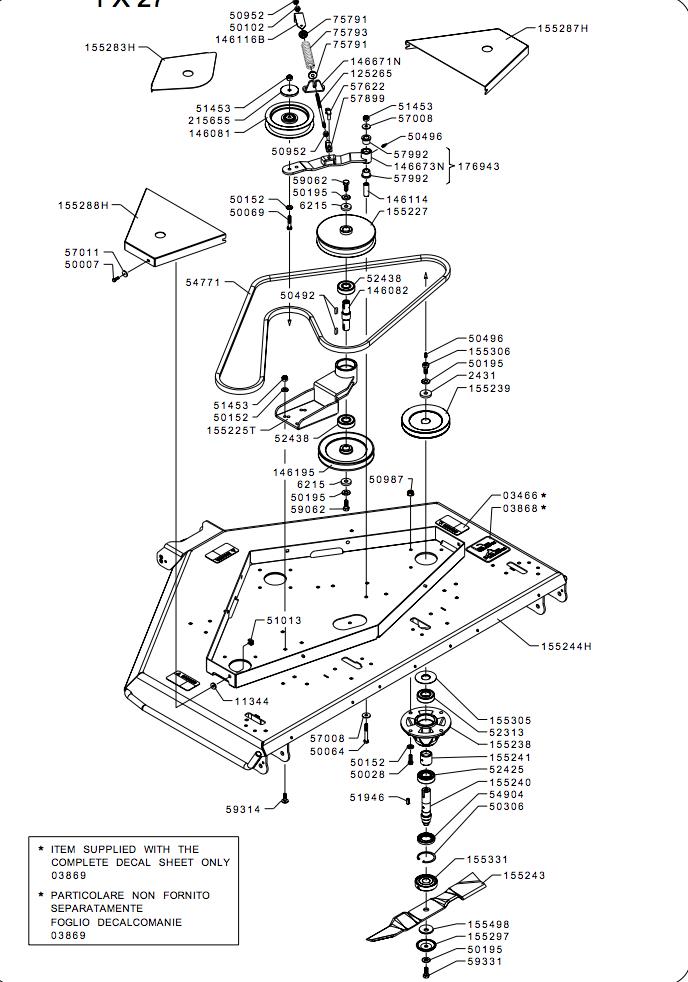

TRANSMISSION FOR 132 cm CUTTING DECK(from s/n 567583 from 2013)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0386803868STICKER£9.56 Add to
0386903869STICKER£25.48 Add to
1134411344WASHER£2.95 Add to
125265125265ROD£13.39 Add to
146081146081GUIDE PULLEY£73.43 Add to
146082146082SHAFT£43.87 Add to
146114146114SPACER£10.50 Add to
146116B146116BSPRING TENSION INDICATOR£5.53 Add to
146195146195PULLEY£86.97 Add to
146671N146671NBRACKET£12.47 Add to
146673N146673NSUPPORT£43.72 Add to
155225T155225TBACK GEAR£117.14 Add to
155227155227PULLEY£150.00 Add to
155238155238BLADE HOLDER HUB£75.60 Add to
155239155239PULLEY£56.61 Add to
155240155240SHAFT£39.31 Add to
155241155241SPACER£11.98 Add to
155243155243CUTTING BLADE£44.01 Add to
155244H155244HCUTTING DECK£1,557.73 Add to
155283H155283HCOVER£35.86 Add to
155287H155287HCOVER£46.68 Add to
155288H155288HCOVER£47.96 Add to
155297155297COVER£29.95 Add to
155305155305COVER£9.56 Add to
155306155306SCREW£13.02 Add to
155331155331GUARD£33.23 Add to
155498155498BELLEVILLE SPRING£7.22 Add to
176943176943SUPPORT£59.36 Add to
215655215655COVER£10.84 Add to
24312431WASHER£4.07 Add to
5000750007SCREW£1.50 Add to
5002850028SCREW£1.49 Add to
5006450064SCREW£1.85 Add to
5006950069SCREW£1.59 Add to
5010250102NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5020950209BEARING£15.55 Add to
5030650306CIRCLIP£2.31 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5049650496FITTING£1.90 Add to
5095250952NUT£1.36 Add to
5098750987NUT£2.72 Add to
5101351013CAGE-NUT£1.76 Add to
5145351453NUT£1.36 Add to
5194651946FEATHER KEY£2.09 Add to
5231352313BEARING£14.02 Add to
5243852438BEARING£16.15 Add to
5477154771BELT£157.56 Add to
5490454904SEAL RING£4.64 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5762257622CLIP£3.23 Add to
5789957899YOKE£6.56 Add to
5799257992BUSHING£4.56 Add to
5906259062SCREW£1.71 Add to
5931459314SCREW£1.85 Add to
5933159331SCREW£2.07 Add to
62156215WASHER£4.15 Add to
7579175791SPRING GUIDE£3.19 Add to
7579375793SPRING£9.03 Add to
