TRANSMISSION(from s/n 335501 from 2005)

Parts list

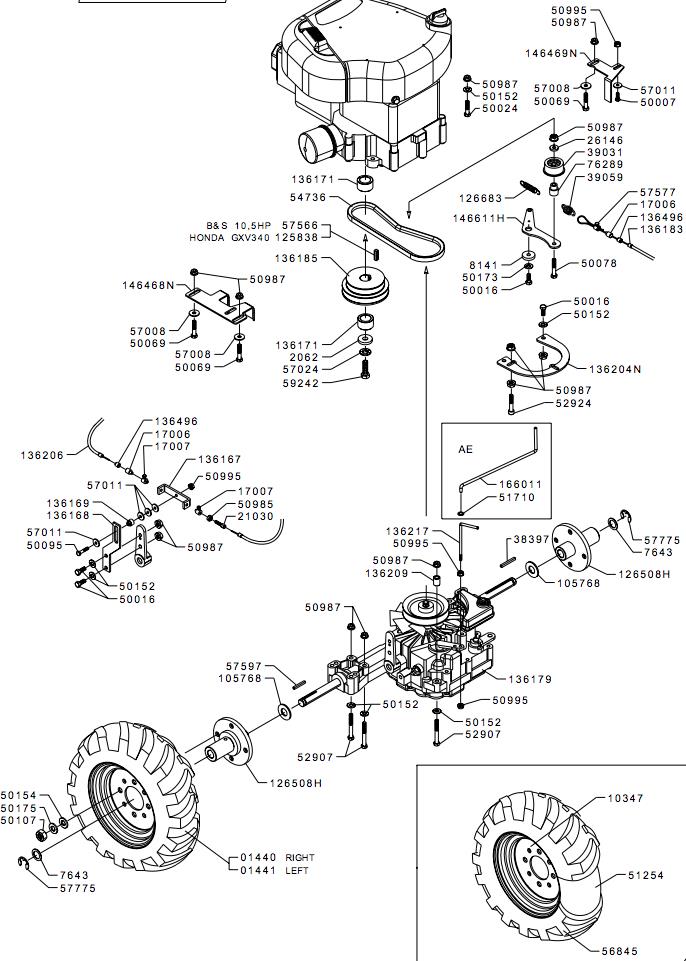

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105768105768WASHER£3.12 Add to
126508H126508HWHEEL HUB£85.53 Add to
126683126683SPRING£9.65 Add to
136183136183WIRE£8.97 Add to
136185136185ENGINE PULLEY CL700£55.20 Add to
136204N136204NSUPPORT£15.15 Add to
136206136206WIRE£25.55 Add to
136217136217LEVER£8.56 Add to
136496136496BOOT£2.53 Add to
146611H146611HTIGHTENER LEVER£7.88 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
20622062WASHER£3.77 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
3839738397FEATHER KEY£6.96 Add to
3903139031GUIDE PULLEY£13.51 Add to
3905939059SPRING£3.57 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5006950069SCREW£1.59 Add to
5007850078SCREW£1.69 Add to
5009550095SCREW£1.42 Add to
5010750107NUT£1.59 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017350173WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5125451254INNERTUBE£14.11 Add to
5171051710RING£1.44 Add to
5290752907SCREW£1.76 Add to
5292452924SCREW£1.81 Add to
5473654736BELT£28.90 Add to
5684556845TYRE£71.00 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5756657566FEATHER KEY£5.46 Add to
5757757577CLAMP£2.95 Add to
5759757597FEATHER KEY£4.64 Add to
5777557775RING SNAP£1.94 Add to
5924259242SCREW£3.05 Add to
7628976289PIN£3.60 Add to
76437643SPACER£2.71 Add to
81418141WASHER£3.84 Add to
