TRANSMISSION(from s/n 536089 from 2010)

Parts list

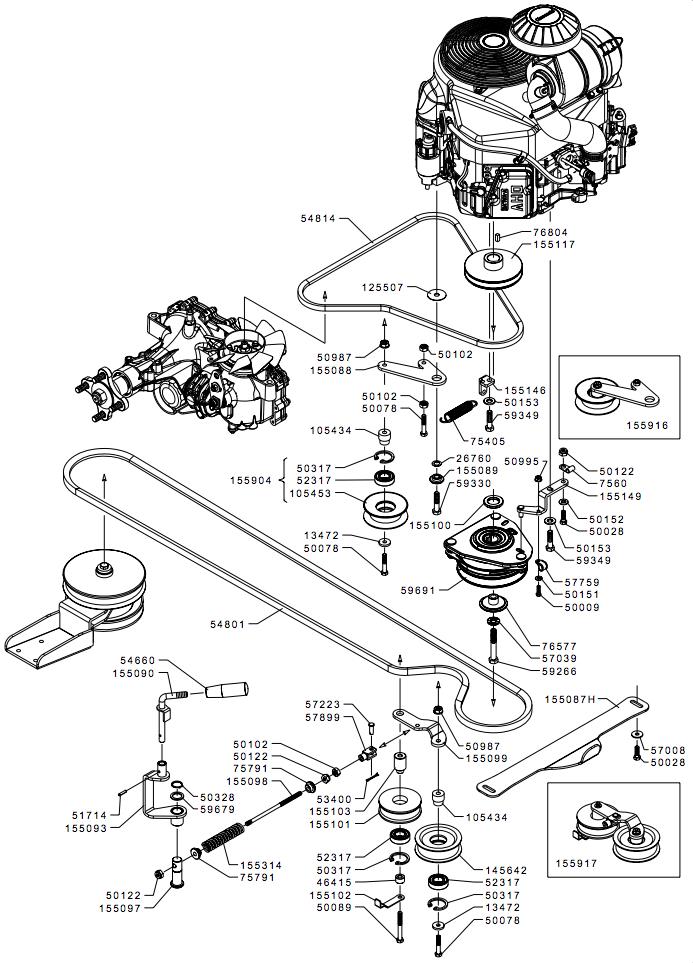

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105434105434BUSHING£6.44 Add to
125507125507SPACER£2.22 Add to
1347213472WASHER£3.19 Add to
145642145642GUIDE PULLEY£50.80 Add to
155088155088BRACKET£13.36 Add to
155090155090LEVER£42.75 Add to
155093155093TRANSMISSION£47.96 Add to
155097155097PIN£23.05 Add to
155098155098ROD£22.81 Add to
155099155099BRACKET£15.09 Add to
155100155100SPACER£9.66 Add to
155101155101PULLEY£73.90 Add to
155102155102FEATHER KEY PTO BELT REPLAC£9.56 Add to
155103155103BUSHING£9.89 Add to
155117155117ENGINE PULLEY FX20£84.28 Add to
155146155146CONNECTION£9.56 Add to
155149155149BRACKET£28.22 Add to
155314155314SPRING BELT STRECHER£17.87 Add to
155904155904GUIDE PULLEY£41.08 Add to
155916155916GUIDE PULLEY£79.08 Add to
155917155917GUIDE PULLEY£208.79 Add to
2676026760SPACER£2.87 Add to
4641546415SPACER£3.73 Add to
500007500007CLUTCH KIT£630.25 Add to
5000950009SCREW£1.42 Add to
5002850028SCREW£1.49 Add to
5007850078SCREW£1.69 Add to
5008950089SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5031750317CIRCLIP£1.97 Add to
5032850328CIRCLIP£1.44 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5171451714PIN£1.61 Add to
5231752317BEARING£9.89 Add to
5340053400SPLIT PIN£1.36 Add to
5466054660KNOB£6.06 Add to
5480154801BELT£171.50 Add to
5481454814BELT£68.96 Add to
5700857008WASHER£1.35 Add to
5703957039WASHER£1.97 Add to
5722357223PIN£3.31 Add to
5775957759CLAMP£4.01 Add to
5789957899YOKE£6.56 Add to
5926659266SCREW£3.84 Add to
5967959679SPACER£6.44 Add to
7540575405SPRING BELT STRECHER£12.27 Add to
75607560FAIRLEAD£5.61 Add to
7579175791SPRING GUIDE£3.19 Add to
7657776577WASHER£19.69 Add to
7680476804FEATHER KEY£2.71 Add to
