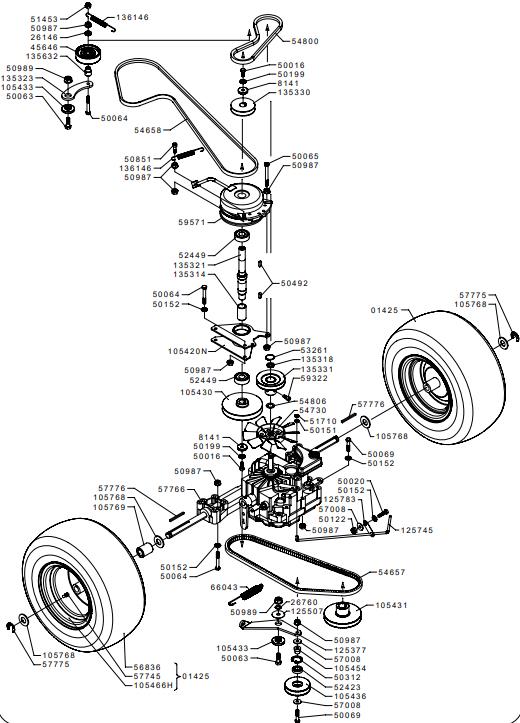

TRANSMISSION (from sn 521515 to sn 526814 from 2009 to 2010)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0142501425RUBBER WHEEL£130.91 Add to
105420N105420NSUPPORT£66.25 Add to
105430105430PULLEY£84.60 Add to
105431105431PULLEY£50.60 Add to
105433105433BUSHING£4.69 Add to
105454105454BUSHING£2.97 Add to
105466H105466HRIM£111.67 Add to
105769105769SPACER£6.69 Add to
125507125507SPACER£2.22 Add to
125745125745ROD£9.34 Add to
125783125783SMALL PLATE£8.40 Add to
135318135318WASHER£4.03 Add to
135323135323TIGHTENER LEVER£6.58 Add to
135330135330PULLEY£50.25 Add to
135331135331PULLEY£69.96 Add to
135632135632BUSHING£8.92 Add to
136146136146SPRING£4.47 Add to
2614626146WASHER£3.64 Add to
2676026760SPACER£2.87 Add to
4564645646WHEEL£23.84 Add to
5001650016SCREW£18.80 Add to
500162500162CLUTCH KIT£415.01 Add to
500174500174DISTRIB. REPLACEMENT KIT£5.18 Add to
5002050020SCREW£1.44 Add to
5006350063SCREW£1.61 Add to
5006450064SCREW£1.85 Add to
5006950069SCREW£1.59 Add to
5012250122NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5031250312CIRCLIP£1.71 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5085150851SCREW£1.58 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5145351453NUT£1.36 Add to
5171051710RING£1.44 Add to
5244952449BEARING£11.58 Add to
5326153261CIRCLIP£1.56 Add to
5465754657BELT£38.92 Add to
5465854658BELT£80.07 Add to
5473054730BLOWER£34.18 Add to
5480054800BELT£37.86 Add to
5480654806WASHER£7.89 Add to
5683656836TYRE£98.73 Add to
5700857008WASHER£1.35 Add to
5774557745VALVE£3.73 Add to
5777557775RING SNAP£1.94 Add to
5777657776FEATHER KEY£10.00 Add to
5932259322SCREW£0.42 Add to
6604366043SPRING£9.34 Add to
81418141WASHER£3.84 Add to
