TRANSMISSION (from sn 549472 to sn 591341 from 2011 to 2015)

Parts list

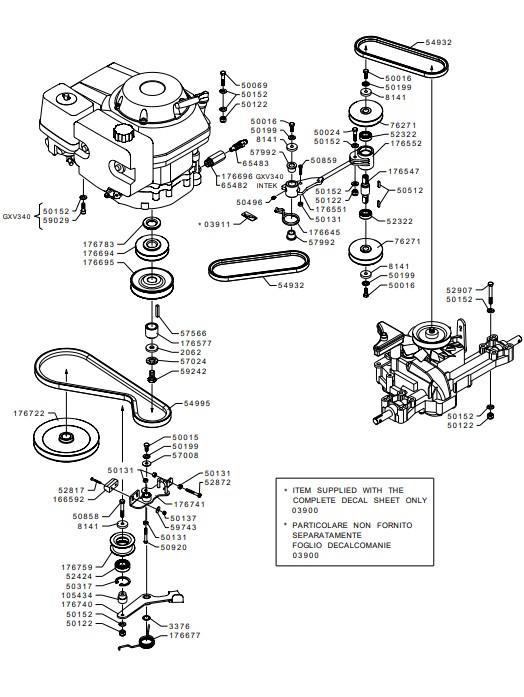

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105434105434BUSHING£6.44 Add to
166592166592BLADE BRAKE 2AV CLS7/CL75£18.77 Add to
176577176577SPACER£9.56 Add to
176645176645SPRING£16.90 Add to
176677176677SPRING£25.52 Add to
176694176694PULLEY£61.73 Add to
176695176695PULLEY£76.34 Add to
176696176696EXTENSION£16.39 Add to
176722176722PULLEY£125.85 Add to
176759176759BELT TENSIONER£44.29 Add to
176783176783SPACER£5.97 Add to
20622062WASHER£3.77 Add to
33763376SPACER£3.02 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5006950069SCREW£1.59 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013750137NUT£1.30 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5023650236BEARING£14.72 Add to
5031750317CIRCLIP£1.97 Add to
5049650496FITTING£1.90 Add to
5051250512FEATHER KEY 5X 5X20£0.84 Add to
5085850858SCREW£1.71 Add to
5085950859SCREW£1.49 Add to
5092050920SCREW£1.45 Add to
5281752817SCREW£1.32 Add to
5287252872SCREW£1.44 Add to
5290752907SCREW£1.76 Add to
5493254932BELT£22.55 Add to
5499554995BELT£67.23 Add to
5700857008WASHER£1.35 Add to
5702457024WASHER£1.49 Add to
5756657566FEATHER KEY£5.46 Add to
5799257992BUSHING£4.56 Add to
5902959029SCREW£3.67 Add to
5924259242SCREW£3.05 Add to
5974359743BELLEVILLE SPRING£0.15 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7627176271PULLEY£58.48 Add to
81418141WASHER£3.84 Add to
