TRANSMISSION (from sn 591342 to sn 730994 from 2015 to 2022)

Parts list

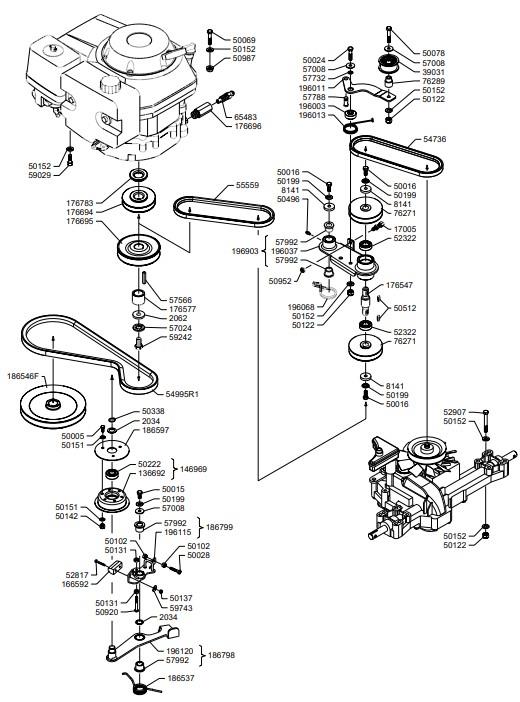

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
146969146969GUIDE PULLEY£19.13 Add to
166592166592BLADE BRAKE 2AV CLS7/CL75£18.77 Add to
1700517005ADJUSTER£5.27 Add to
176577176577SPACER£9.56 Add to
176694176694PULLEY£61.73 Add to
176695176695PULLEY£76.34 Add to
176696176696EXTENSION£16.39 Add to
176783176783SPACER£5.97 Add to
186537186537SPRING£16.12 Add to
186546F186546FPULLEY£66.29 Add to
186597186597PLATE£4.50 Add to
186798186798SUPPORT£54.14 Add to
186799186799SUPPORT£31.46 Add to
196003196003BUSHING£10.17 Add to
196011196011SUPPORT£14.10 Add to
196013196013SPRING£11.62 Add to
196068196068SPRING£10.58 Add to
196903196903TRANSMISSION£77.53 Add to
20342034SPACER£3.02 Add to
20622062WASHER£3.77 Add to
3903139031GUIDE PULLEY£13.51 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013750137NUT£1.30 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5033850338CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5051250512FEATHER KEY 5X 5X20£0.84 Add to
5092050920SCREW£1.45 Add to
5095250952NUT£1.36 Add to
5098750987NUT£2.72 Add to
5281752817SCREW£1.32 Add to
5290752907SCREW£1.76 Add to
5473654736BELT£28.90 Add to
54995R154995R1BELT£59.03 Add to
5555955559BELT£35.47 Add to
5700857008WASHER£1.35 Add to
5702457024WASHER£1.49 Add to
5756657566FEATHER KEY£5.46 Add to
5773257732SPACER£2.21 Add to
5778857788CLAMP£3.39 Add to
5799257992BUSHING£4.56 Add to
5902959029SCREW£3.67 Add to
5924259242SCREW£3.05 Add to
5974359743BELLEVILLE SPRING£0.15 Add to
6548365483STEM£9.56 Add to
7627176271PULLEY£58.48 Add to
7628976289PIN£3.60 Add to
81418141WASHER£3.84 Add to
