TRANSMISSION - KOHLER 15,5hp (from sn 264001 from 2001)

Parts list

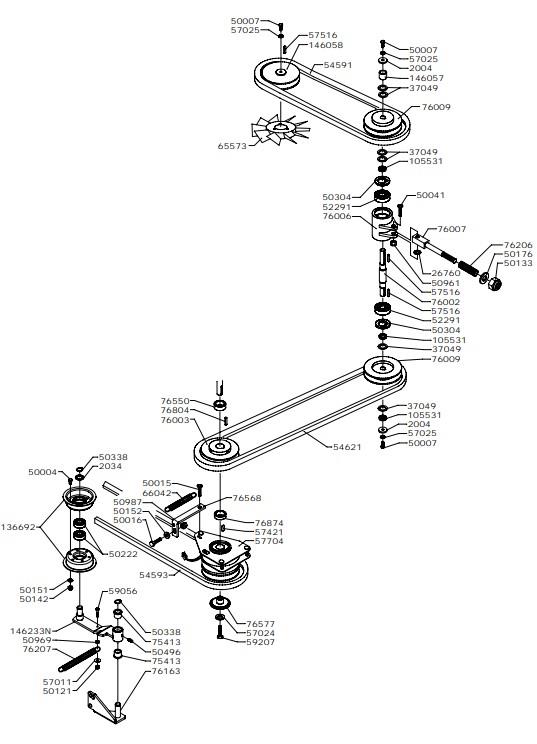

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105531105531SPACER£4.69 Add to
136692136692GUIDE PULLEY£12.08 Add to
146057146057SPACER£2.27 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
146233N146233NSUPPORT£27.01 Add to
20042004WASHER£3.69 Add to
20342034SPACER£3.02 Add to
2676026760SPACER£2.87 Add to
3704937049WASHER£3.69 Add to
5000450004SCREW£1.36 Add to
5000750007SCREW£1.50 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5004150041SCREW£1.81 Add to
5012150121NUT£1.36 Add to
5013350133NUT£2.21 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017650176WASHER£1.60 Add to
5022250222BEARING£8.85 Add to
5030450304CIRCLIP£2.09 Add to
5033850338CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5096950969NUT£1.30 Add to
5098750987NUT£2.72 Add to
5229152291BEARING£17.96 Add to
5459154591BELT£39.11 Add to
5459354593BELT£58.88 Add to
5462154621BELT£19.44 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5702557025WASHER£1.34 Add to
5742157421FEATHER KEY£4.51 Add to
5751657516FEATHER KEY£1.10 Add to
5770457704CLUTCH£436.77 Add to
5905659056SCREW£1.45 Add to
5920759207SCREW£3.97 Add to
6557365573BLOWER£34.79 Add to
6604266042SPRING£8.52 Add to
7600976009PULLEY£95.34 Add to
7620676206SPRING BELT STRECHER£10.43 Add to
7620776207SPRING£11.13 Add to
7655076550SPACER£4.25 Add to
7656876568CLUTCH LOCK PLATE£10.31 Add to
7657776577WASHER£19.69 Add to
7680476804FEATHER KEY£2.71 Add to
