  • TWO-POINT LINKAGE & SEAT(from s/n 536089 to s/n 562912 from 2010 to 2012)

TWO-POINT LINKAGE & SEAT(from s/n 536089 to s/n 562912 from 2010 to 2012)

Parts list

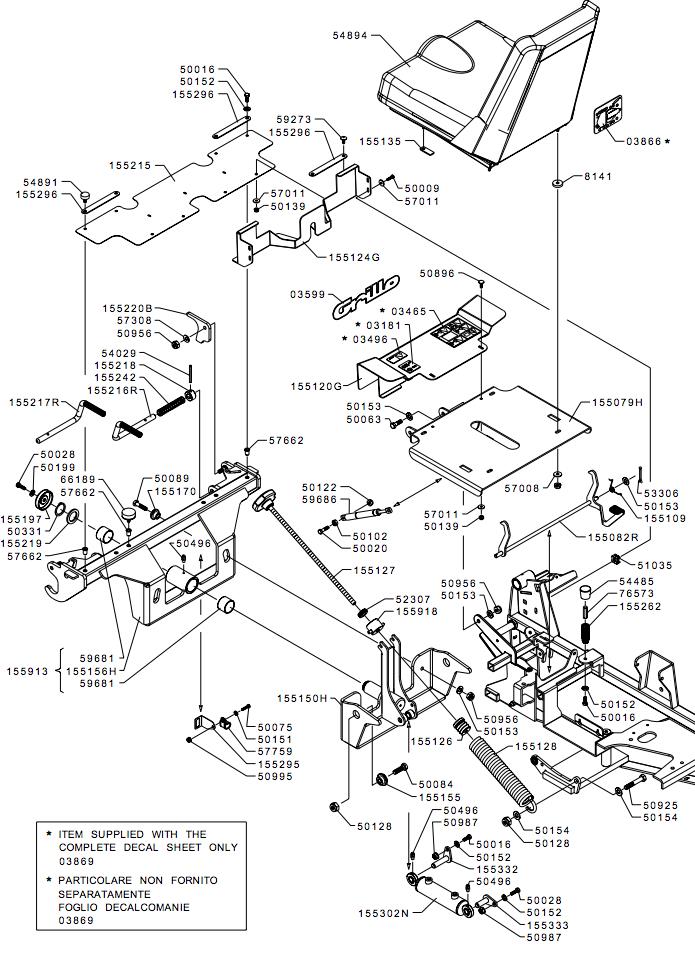

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0359903599STICKER£10.62 Add to
0386903869STICKER£25.48 Add to
155082R155082RHOOK£79.08 Add to
155109155109SPRING£13.72 Add to
155120G155120GFAIRING£105.03 Add to
155124G155124GSHEET£105.03 Add to
155126155126LOCK£32.38 Add to
155128155128SPRING£42.75 Add to
155155155155BUSHING£11.29 Add to
155170155170BUSHING£8.54 Add to
155197155197PLUG£16.14 Add to
155215155215GUARD£28.58 Add to
155216R155216RLEVER£42.75 Add to
155217R155217RLEVER£42.75 Add to
155218155218BUSHING£9.89 Add to
155219155219SPACER£9.89 Add to
155220B155220BSTOP£13.36 Add to
155242155242SPRING£10.77 Add to
155262155262SPRING£16.82 Add to
155295155295BRACKET£8.15 Add to
155302N155302NCYLINDER£257.19 Add to
155332155332PIN£27.20 Add to
155333155333PIN£27.41 Add to
155918155918SUPPORT£25.82 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002050020SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5006350063SCREW£1.61 Add to
5007550075SCREW£1.42 Add to
5008450084SCREW£2.04 Add to
5008950089SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012850128NUT£1.58 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5019950199WASHER£1.58 Add to
5033150331CIRCLIP£1.81 Add to
5049650496FITTING£1.90 Add to
5089650896SCREW£1.52 Add to
5092550925SCREW£2.66 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5103551035CAGE-NUT£1.66 Add to
5230752307BEARING£4.85 Add to
5330653306SPLIT PIN£1.36 Add to
5448554485PLUG£3.09 Add to
5489154891RUBBER PAD£7.57 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5730857308BELLEVILLE SPRING£1.61 Add to
5766257662THREADED INSERT£1.89 Add to
5775957759CLAMP£4.01 Add to
5968659686GAS SPRING£39.31 Add to
6618966189RUBBER PAD£7.98 Add to
7657376573EXTENSION£3.28 Add to
81418141WASHER£3.84 Add to
