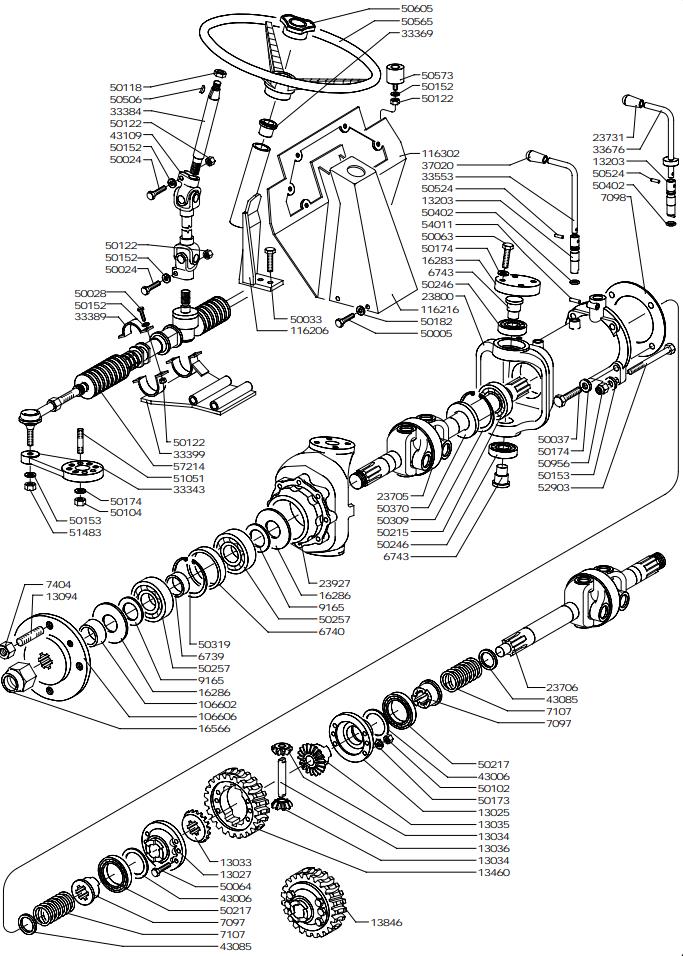

TYRES AXLE(from sn 129701 from 1986)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
106602106602BUSHING£33.30 Add to
1302513025COVER£96.65 Add to
1302713027COVER£115.42 Add to
1303313033SUN GEAR£87.38 Add to
1303413034IDLE PINION£54.32 Add to
1303513035SUN GEAR£101.95 Add to
1303613036PIN£19.63 Add to
1309413094STUD£4.07 Add to
1320313203PLUNGER£24.90 Add to
1346013460RING GEAR£272.82 Add to
1384613846DIFFERENTIAL£727.61 Add to
1628616286GUARD£8.33 Add to
1656616566NUT£15.38 Add to
2370523705AXLE-SHAFT£657.90 Add to
2370623706AXLE-SHAFT£653.39 Add to
2373123731KNOB£3.67 Add to
2380023800WHEELS AXLE CASE£288.65 Add to
2392723927CAP£365.59 Add to
3336933369BUSHING£21.77 Add to
3338433384STEERING COLUMN£69.62 Add to
3339933399SUPPORT£121.93 Add to
3702037020KNOB£3.93 Add to
4300643006N/A POA
4310943109PROPELLER SHAFT£66.34 Add to
4793247932STEERING£372.37 Add to
5000550005SHAFT -INPUT£1.53 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5003750037SCREW£1.76 Add to
5006350063SCREW£1.61 Add to
5006450064SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5011850118NUT£3.05 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5021550215BEARING£31.79 Add to
5021750217BEARING£37.62 Add to
5025750257BEARING£57.25 Add to
5030950309CIRCLIP£2.97 Add to
5031950319CIRCLIP£3.23 Add to
5037050370SEAL RING£12.18 Add to
5040250402O-RING£1.52 Add to
5040250402O-RING£1.52 Add to
5050650506FEATHER KEY 5 X 7.5 UNI 6606£2.48 Add to
5052450524PIN£1.42 Add to
5056550565STEERING WHEEL£105.99 Add to
5057350573RUBBER PAD£6.29 Add to
5060550605COVER£5.08 Add to
5095650956NUT£1.47 Add to
5105151051STUD£3.02 Add to
5148351483NUT£1.75 Add to
5243852438BEARING£16.15 Add to
5401154011PIN£2.28 Add to
67396739SPACER£9.80 Add to
67406740SPACER£11.84 Add to
67436743PIN£30.05 Add to
70977097COUPLING£62.48 Add to
70987098GASKET£3.10 Add to
71077107SPRING£4.69 Add to
74047404NUT£4.59 Add to
91659165SPACER£3.41 Add to
