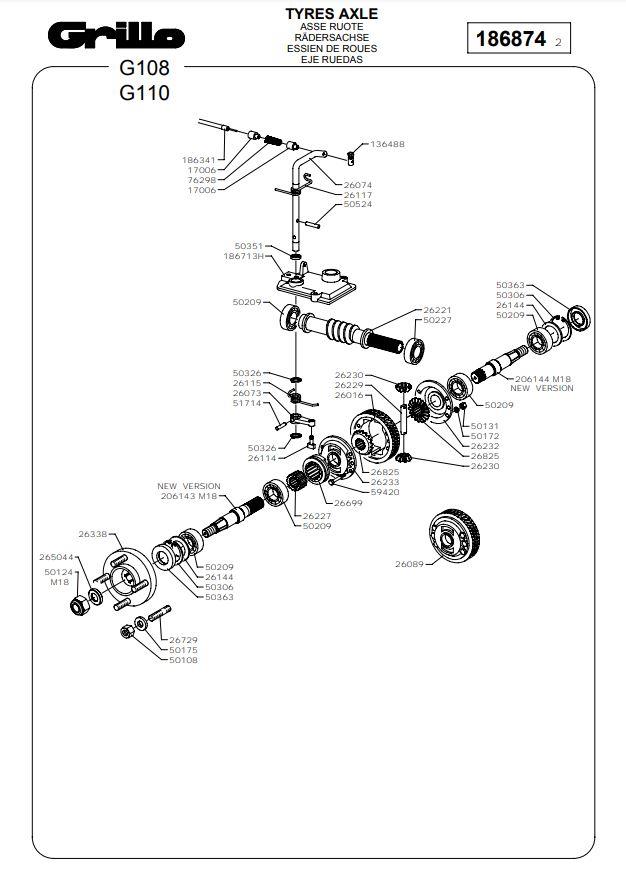

TYRES AXLE (from sn 695770 from 2020)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136488136488CLAMP£3.75 Add to
1700617006BUSHING£51.96 Add to
186341186341WIRE£8.90 Add to
186713H186713HCOVER£67.26 Add to
206143206143HALF AXLE LONG£58.50 Add to
206144206144HALF AXLE SHORT£57.39 Add to
2601626016RING GEAR£183.77 Add to
2607326073LEVER£20.56 Add to
2607426074LEVER£22.15 Add to
2608926089DIFFERENTIAL£428.02 Add to
2611426114DISK£4.54 Add to
2611526115LEVER SPRING£3.64 Add to
2611726117SPRING£3.64 Add to
2614426144SPACER£3.41 Add to
2622126221WORM SCREW£156.18 Add to
2622726227BUSHING£28.92 Add to
2622926229SPRING-FRICTION£4.98 Add to
2623026230IDLE PINION£43.03 Add to
2623226232COVER£52.05 Add to
2623326233COVER£78.20 Add to
2633826338WHEEL HUB£59.85 Add to
265044265044WASHER£3.77 Add to
2669926699COUPLING£55.25 Add to
2672926729STUD£3.04 Add to
2682526825SUN GEAR£58.73 Add to
5010850108NUT£1.71 Add to
5012450124NUT£2.84 Add to
5013150131NUT£1.32 Add to
5017250172WASHER£1.30 Add to
5017550175WASHER£1.42 Add to
5020950209BEARING£15.55 Add to
5022750227BEARING£40.58 Add to
5030650306CIRCLIP£2.31 Add to
5032650326CIRCLIP£1.37 Add to
5035150351SEAL RING£3.28 Add to
5036350363SEAL RING£4.46 Add to
5052450524PIN£1.42 Add to
5171451714PIN£1.61 Add to
5942059420SCREW£1.39 Add to
7629876298SPRING£3.81 Add to
