VANGUARD ENGINE 21hp (from sn 264001 from 2000)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

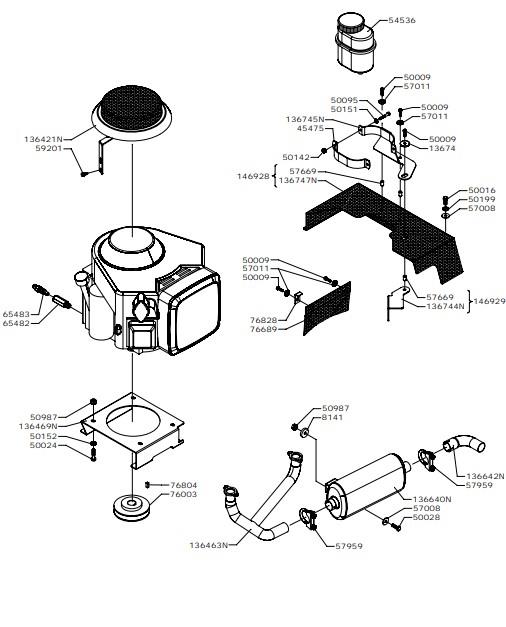

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136421N136421NENGINE GRID£64.23 Add to
136463N136463NMANIFOLD£112.72 Add to
136469N136469NSUPPORT£35.46 Add to
136640N136640NMUFFLER£214.21 Add to
136642N136642NMANIFOLD£211.76 Add to
1367413674WASHER£3.43 Add to
136745N136745NSUPPORT£23.21 Add to
146928146928SHEET£59.71 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5009550095SCREW£1.42 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5098750987NUT£2.72 Add to
5453654536TANK£74.59 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5766957669THREADED INSERT£1.64 Add to
5795957959CLAMP£3.25 Add to
5920159201SCREW£1.39 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7680476804FEATHER KEY£2.71 Add to
81418141WASHER£3.84 Add to
