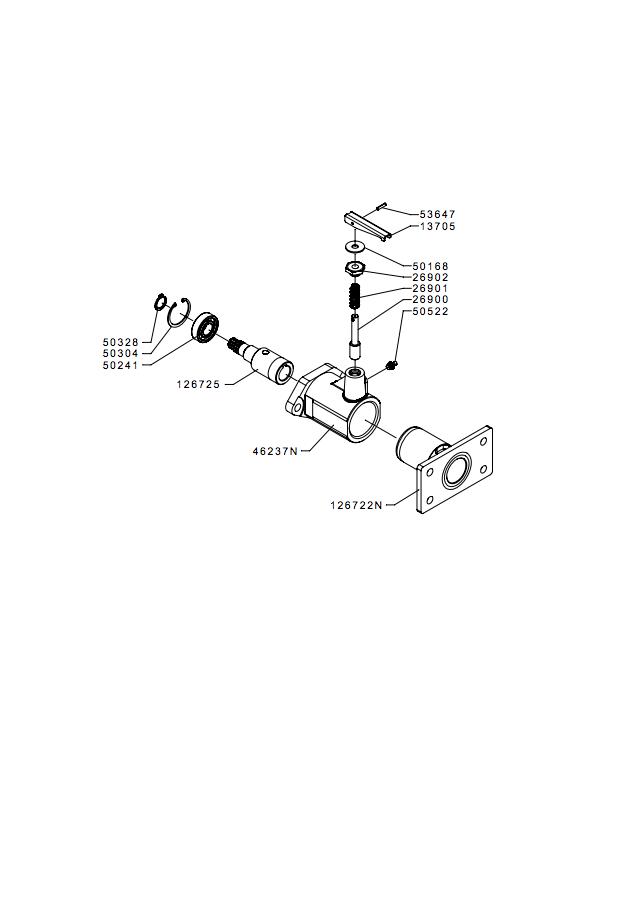

Z68 ALL PURPOSE FLAIL QUICK COUPLING(from s/n 144251 from 1988)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126722N126722NFLANGE CONNECTION£102.94 Add to
126725126725SHAFT£102.66 Add to
1370513705LEVER£7.55 Add to
2690026900PIN£22.62 Add to
2690126901SPRING£4.42 Add to
2690226902SCREW£7.40 Add to
46237N46237NCONNECTION£158.91 Add to
5016850168WASHER£1.45 Add to
5030450304CIRCLIP£2.09 Add to
5032850328CIRCLIP£1.44 Add to
5052250522FITTING£2.27 Add to
5244952449BEARING£11.58 Add to
5364753647SPRING PIN£1.34 Add to
