540MM QUICK CUT BLADE ASSEMBLY

Parts list

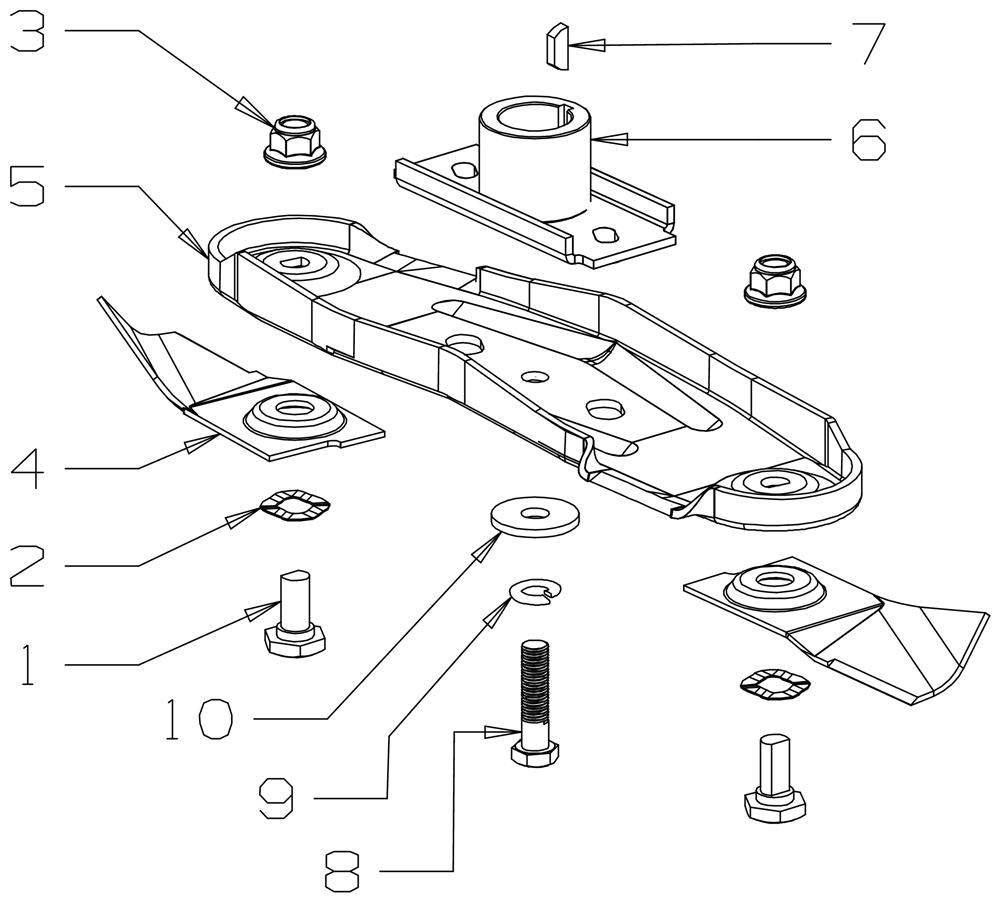

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-581707BOLT£2.21 Add to
002MA-580693WASHER WAVY 13,4X2.5£1.89 Add to
003MA-503672NUT NYLOC M10£2.02 Add to
004MA-579749QUICK CUT BLADE 540MM£8.56 Add to
005MA-980653BLADE CARRIER£26.05 Add to
006MA-031640BOSS 25MM£18.29 Add to
007MA-503363KEY£0.59 Add to
008MA-503543BOLT HEX NF 3/8X1.5 N£2.74 Add to
009MA-500204WASHER£1.68 Add to
010MA-503667WASHER, FLT 9.75 X 30 X 3£1.19 Add to
