DECK

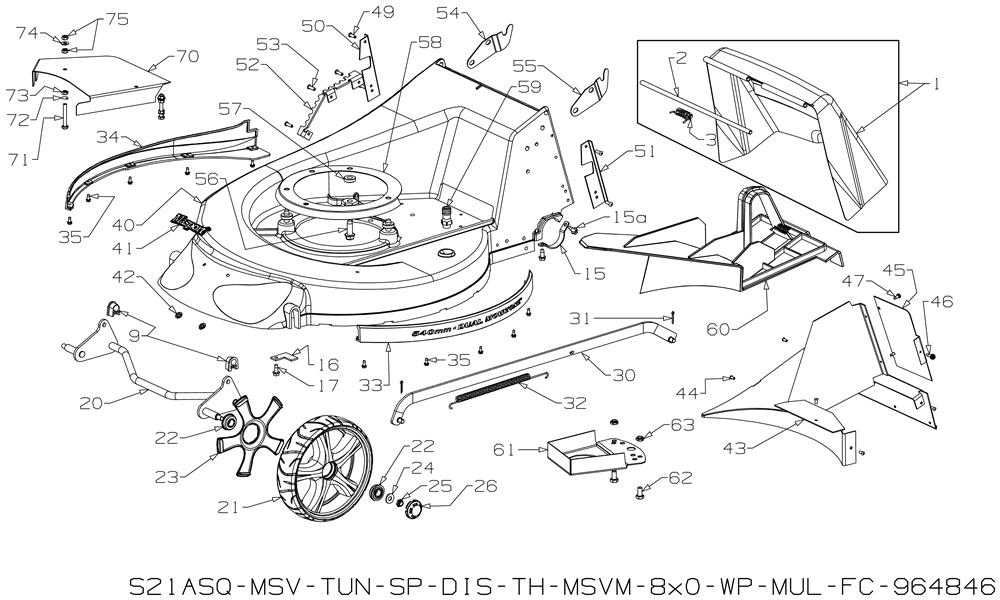

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-764454	FLAP ASSY-STEEL CONTRA	£49.49	Add to
002	MA-583312	WIRE-FLAP PIVOT 325X8	£4.32	Add to
003	MA-565095	SPRING	£1.99	Add to
009	MA-580030	AXLE BUSH	£2.02	Add to
015A	MA-501599	SCREW	£1.52	Add to
016	MA-565184	PLATE-RETAINER,AXLE 21	£2.33	Add to
017	MA-501599	SCREW	£1.52	Add to
020	MA-983305	AXLE ASSY	£26.25	Add to
021	MA-573706	200MM SP MULCHER WHEEL	£29.87	Add to
022	MA-551212	WHEEL BEARING	£5.15	Add to
023	MA-579205	WHEEL COVER	£2.49	Add to
024	MA-501606	WASHER	£2.02	Add to
025	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
026	MA-579204	BUTTON HUB CAP	£0.63	Add to
030	MA-573814	CONN ROD 800	£14.65	Add to
031	MA-501056	COTTER PIN	£0.47	Add to
032	MA-573844	SPRING	£6.51	Add to
033	MA-579742	SKIRT LH	£9.84	Add to
034	MA-579741	SKIRT-SIDE, R/H 540 BLA	£11.87	Add to
035	MA-503834	SCREW	£0.53	Add to
040	MA-764100	HSG ASSY-ALIT21"FS SYN	£315.53	Add to
041	MA-567406	MASPORT NAMEPLATE 13 ON	£5.19	Add to
042	MA-503150	CLIP STARLOCK 5 DIA	£0.63	Add to
043	MA-967244	TUNNEL ASSY-21" SP BLK	£66.51	Add to
044	MA-503200	RIVET-POP 4.8DIAX12.7	£0.51	Add to
045	MA-564383	TUNNEL-GBOX CVR 21" ALI	£5.60	Add to
047	MA-503630	SCREW	£0.95	Add to
049	MA-503200	RIVET-POP 4.8DIAX12.7	£0.51	Add to
050	MA-564368	BRACKET, REAR FLAP RH	£4.28	Add to
051	MA-573548	BRACKET, REAR FLAP LH	£4.44	Add to
052	MA-573582	HEIGHT QUAD 800	£14.23	Add to
054	MA-564300	BRACKET-CATCHER MOUNT.	£5.98	Add to
055	MA-564299	BRACKET-CATCHER MOUNT.	£5.98	Add to
056	MA-580453	SCREW	£2.13	Add to
057	MA-503419	WASHER	£0.87	Add to
058	MA-569037	SAFETY RING	£15.72	Add to
059	MA-503783	WASH PORT	£4.03	Add to
060	MA-773059	MULCHING PLUG 21	£35.23	Add to
061	MA-567412	COVER-BELT, SPV 21" SYN	£19.99	Add to
063	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
070	MA-973662	COVER	£20.57	Add to
074	MA-501703	WASHER FLT 6X14 X 1.2 Z	£0.47	Add to
075	MA-501764	NUT REPLACE	£2.02	Add to
