GEARBOX & BELT

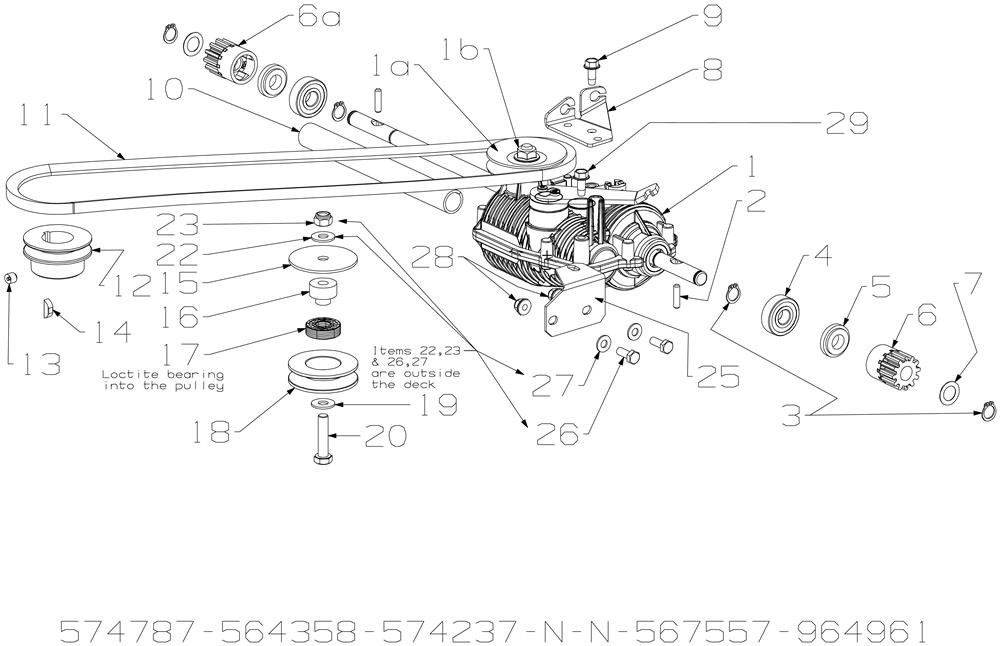

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-774787	GEARBOX PAWL KIT CON21	£197.39	Add to
002	MA-574788	AXLE PIN	£6.43	Add to
003	MA-503759	CIRCLIP D=12	£2.02	Add to
004	MA-501213	BEARING	£16.87	Add to
005	MA-581093	CAP 900/950SP	£10.04	Add to
006	MA-569178	PINION LH	£28.46	Add to
006A	MA-569179	PINION RH	£28.46	Add to
007	MA-503102	WASHER	£0.81	Add to
008	MA-564249	BRACKET CABLE MOUNT	£6.31	Add to
009	MA-501599	SCREW	£1.52	Add to
011	MA-564358	BELT CONT 21	£34.52	Add to
012	MA-574237	ENG PULLEY	£30.78	Add to
013	MA-503386	GRUB SCREW (M8X8)	£0.59	Add to
014	MA-503363	KEY	£0.59	Add to
016	MA-574273	IDLER SPACER M8	£13.73	Add to
017	MA-503901	BEARING	£16.88	Add to
018	MA-573383	PULLEY VEE SP VAR	£21.20	Add to
019	MA-501606	WASHER	£2.02	Add to
022	MA-501606	WASHER	£2.02	Add to
023	MA-501793	NYLOC NUT M8	£0.73	Add to
025	MA-567557	BRACKET-GBOX MOUNT,CO	£6.02	Add to
026	MA-501702	SCREW, SET M6X16 HEX	£0.59	Add to
027	MA-501703	WASHER FLT 6X14 X 1.2 Z	£0.47	Add to
028	MA-503973	NUT, M6 HEX NYLOC FLA	£0.59	Add to
029	MA-501599	SCREW	£1.52	Add to
