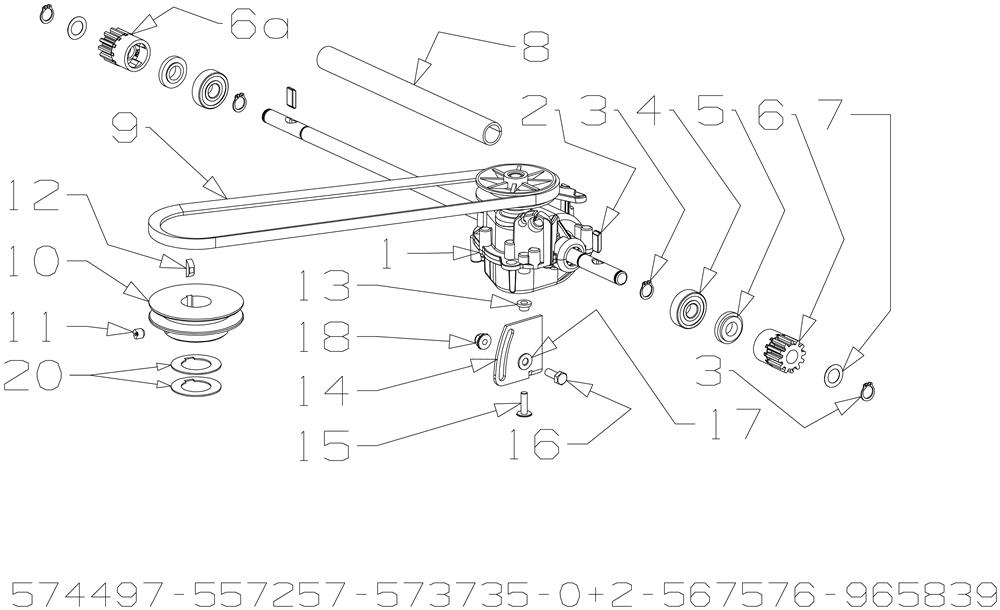

GEARBOX & BELT

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-574497GEAR BOX 575SP£99.26 Add to
002MA-581092PAWL£2.65 Add to
003MA-503759CIRCLIP D=12£2.02 Add to
004MA-501213BEARING£16.87 Add to
005MA-581093CAP 900/950SP£10.04 Add to
006MA-569178PINION LH£28.46 Add to
006AMA-569179PINION RH£28.46 Add to
007MA-503102WASHER£0.81 Add to
008MA-580614SLEEVE REAR AXLE£5.80 Add to
009MA-574401BELT-V HC VEXTRA XPZ 7£27.59 Add to
011MA-503386GRUB SCREW (M8X8)£0.59 Add to
012MA-503363KEY£0.59 Add to
013MA-564093BUSH G BOX MNT£5.57 Add to
014MA-557459MOUNT GEARBOX£14.52 Add to
015MA-503650SCREW£0.95 Add to
016MA-501702SCREW, SET M6X16 HEX£0.59 Add to
017MA-501703WASHER FLT 6X14 X 1.2 Z£0.47 Add to
018MA-503973NUT, M6 HEX NYLOC FLA£0.59 Add to
