GEARBOX & BELT

Parts list

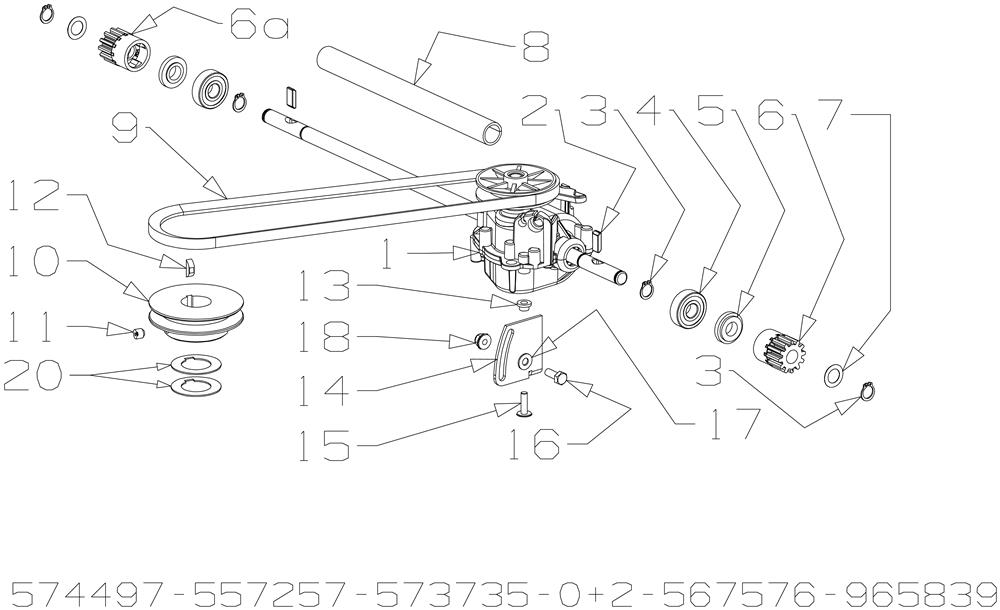

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-573181800ST GEARBOX£149.23 Add to
002MA-581092PAWL£2.65 Add to
003MA-503759CIRCLIP D=12£2.02 Add to
004MA-501213BEARING£16.87 Add to
005MA-581093CAP 900/950SP£10.04 Add to
006MA-569178PINION LH£28.46 Add to
006AMA-569179PINION RH£28.46 Add to
007MA-503102WASHER£0.81 Add to
009MA-571009DRIVE BELT£26.56 Add to
011MA-503386GRUB SCREW (M8X8)£0.59 Add to
012MA-503363KEY£0.59 Add to
014MA-573759MOUNT£5.02 Add to
015MA-503955SCREW,SET M 10X 12 HEX£1.19 Add to
016MA-501702SCREW, SET M6X16 HEX£0.59 Add to
017MA-501703WASHER FLT 6X14 X 1.2 Z£0.47 Add to
018MA-503973NUT, M6 HEX NYLOC FLA£0.59 Add to
