GEARBOX & PULLEY

Parts list

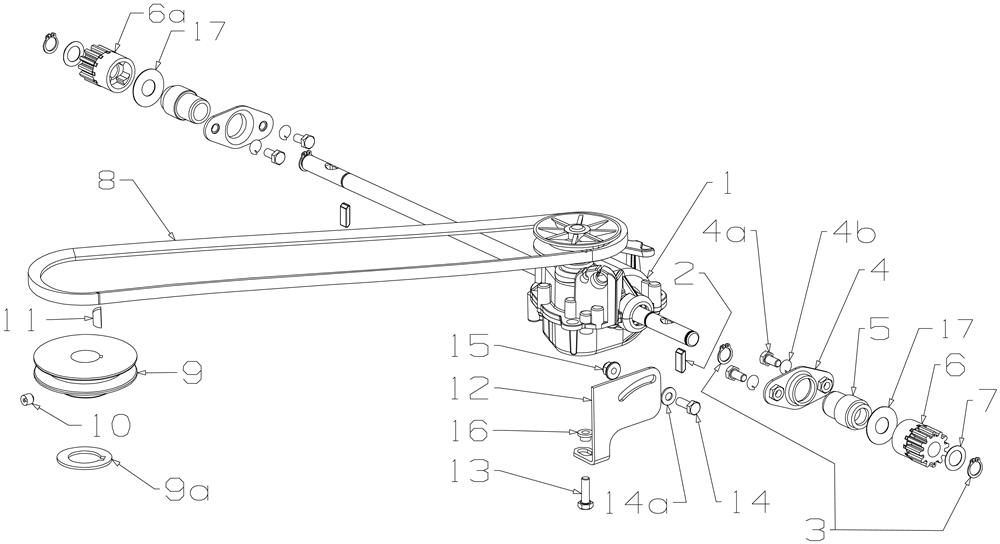

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-574161GEARBOX 150£79.99 Add to
002MA-581092PAWL£2.65 Add to
003MA-503759CIRCLIP D=12£2.02 Add to
004MA-567598AXLE RET REAR£6.47 Add to
004AMA-501959SET SCREW£0.53 Add to
005MA-567572BOSS BEARING LH£3.20 Add to
006MA-569179PINION RH£28.46 Add to
006AMA-569178PINION LH£28.46 Add to
007MA-503102WASHER£0.81 Add to
008MA-574217BELT£19.37 Add to
009AMA-569552SPACER PULLEY ENGINE£3.11 Add to
010MA-503386GRUB SCREW (M8X8)£0.59 Add to
011MA-500636KEY£1.42 Add to
012MA-574212GEARBOX MOUNT£5.10 Add to
013MA-501600SCREW£0.51 Add to
014MA-501702SCREW, SET M6X16 HEX£0.59 Add to
014AMA-501703WASHER FLT 6X14 X 1.2 Z£0.47 Add to
015MA-503973NUT, M6 HEX NYLOC FLA£0.59 Add to
016MA-564093BUSH G BOX MNT£5.57 Add to
017MA-564092WASHER, FLT 13X30 X 0.6£0.81 Add to
