HANDLE

Parts list

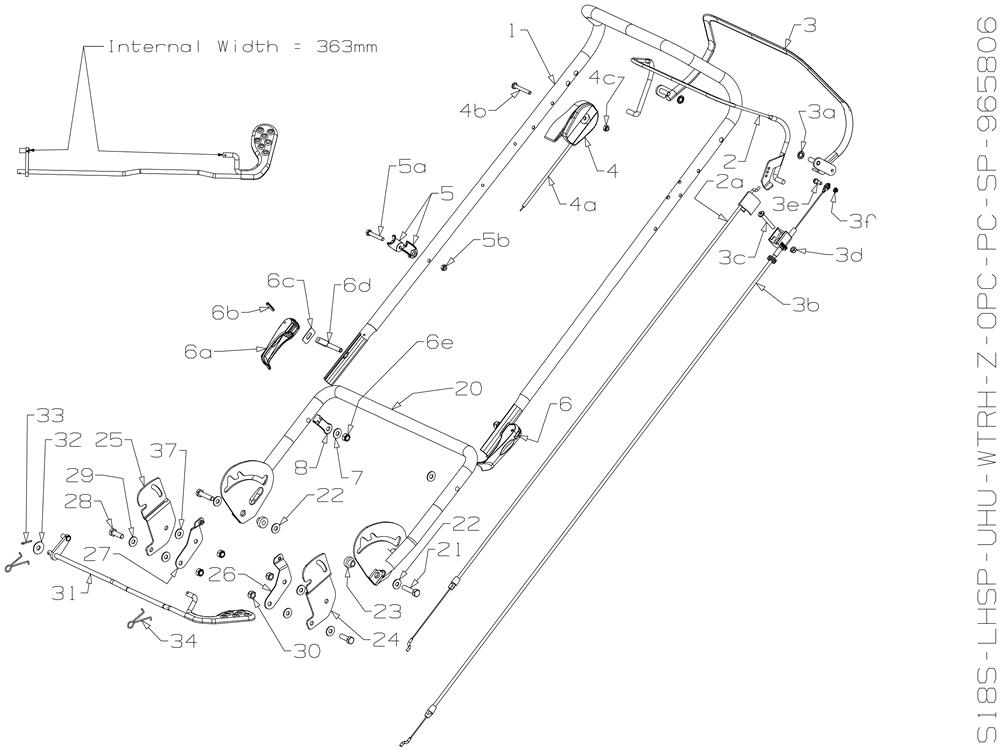

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-781265HANDLE£33.36 Add to
002MA-981740BAIL HANDLE FLAT£17.80 Add to
002AMA-581656OPC CABLE£15.77 Add to
003MA-982161CLUTCH BAIL£24.48 Add to
003AMA-501365CLIP£0.63 Add to
003BMA-765434CLUTCH CABLE KIT£22.61 Add to
003CMA-503604SCREW, PAN M 6X45 POZ£0.91 Add to
003DMA-501764NUT REPLACE£2.02 Add to
003EMA-502237BOLT, HEX FL HEAD SHOULDER£12.86 Add to
003FMA-502238NUT, M5 HEX NYLOCX5TH£0.51 Add to
004MA-583458CONTROL - THROTTLE COMPLETE WITH CABLE£16.72 Add to
004BMA-503604SCREW, PAN M 6X45 POZ£0.91 Add to
004CMA-501764NUT REPLACE£2.02 Add to
005MA-703856COMFORT START KIT£16.55 Add to
005AMA-503794SCREW, SET M6X40 (HT4.6)£0.53 Add to
005BMA-501764NUT REPLACE£2.02 Add to
006MA-779755LEVER HANDLE LOCKING£9.13 Add to
006AMA-582419LEVER-HANDLE LOCKING M£4.28 Add to
006BMA-503369PIN£2.02 Add to
006CMA-016777WASHER£0.81 Add to
006EMA-501793NYLOC NUT M8£0.73 Add to
007MA-501606WASHER£2.02 Add to
008MA-581527RETAINER-CLUTCH CABLE£0.81 Add to
020MA-967594HANDLE LOWER FOLD BAR£38.63 Add to
022MA-501606WASHER£2.02 Add to
028MA-501597SCREW M8X20£0.59 Add to
029MA-501606WASHER£2.02 Add to
030MA-501793NYLOC NUT M8£0.73 Add to
031MA-967542HAND ADJ ROD LOWER£39.50 Add to
033MA-501056COTTER PIN£0.47 Add to
034MA-567381SPRING ERGO LIFT£1.47 Add to
037MA-501606WASHER£2.02 Add to
