HANDLE

Parts list

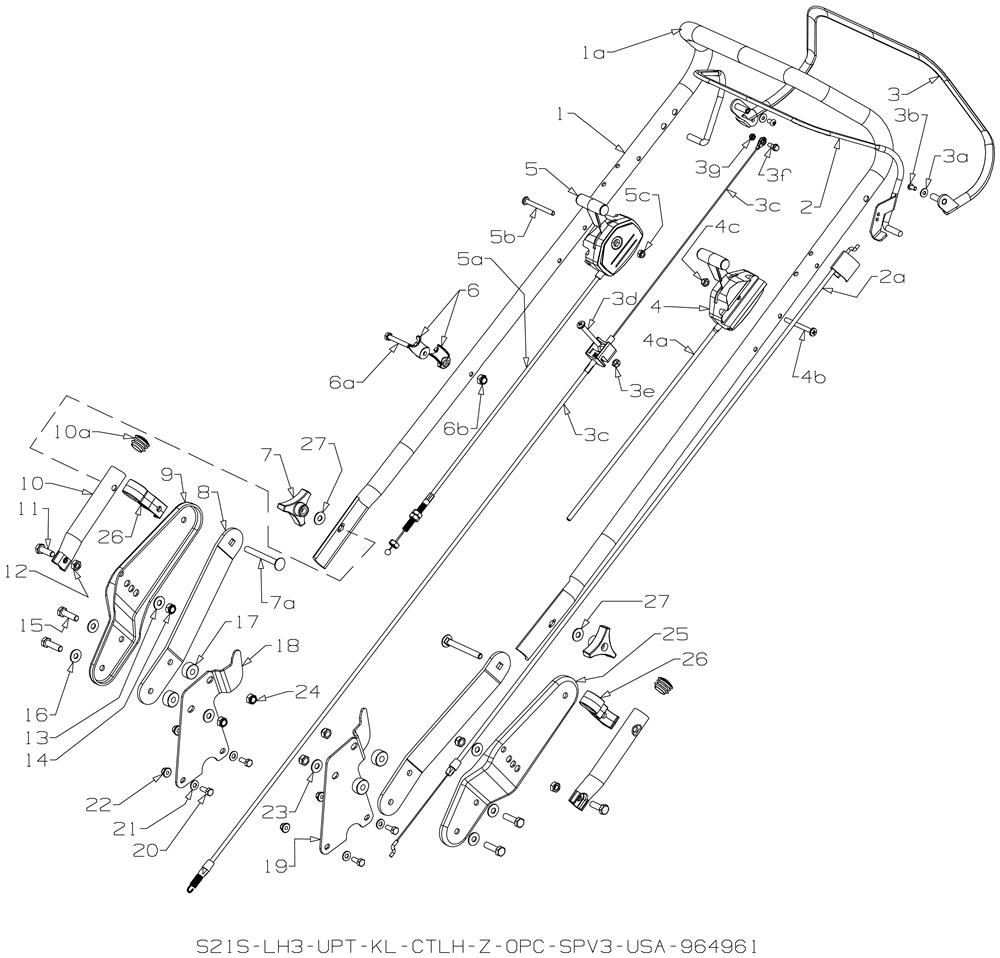

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-764088HANDLE & SLEEVE CONT O£47.50 Add to
002MA-974365BAIL ARM£14.98 Add to
002AMA-579782OPC CABLE 800£14.23 Add to
003MA-764336BAIL ASSY SP CONTR£31.16 Add to
003AMA-500848WASHER£0.53 Add to
003CMA-564339CABLE CLUTCH CONTR 21£19.37 Add to
003EMA-501764NUT REPLACE£2.02 Add to
003FMA-502237BOLT, HEX FL HEAD SHOULDER£12.86 Add to
003GMA-502238NUT, M5 HEX NYLOCX5TH£0.51 Add to
004MA-583460RRSP HONDA THROTTLE CABLE£21.49 Add to
004CMA-501764NUT REPLACE£2.02 Add to
005MA-765392SPEED CABLE£37.92 Add to
005MA-574272SPEED CONT BOX 3 SPEED£19.17 Add to
005CMA-501764NUT REPLACE£2.02 Add to
006MA-782546COMFORT START KIT£13.98 Add to
006BMA-501764NUT REPLACE£2.02 Add to
007MA-574230KNOB INSERT£3.90 Add to
007AMA-502177COACH BOLT M8 X 75£2.02 Add to
008MA-574128BRACE HAND BRA£21.08 Add to
009MA-964082BRACKET HANDLE ADJUSTB£15.85 Add to
010MA-974129HANDLE STUB 21£9.09 Add to
012MA-501602NUT, M8 HEX ZP£0.53 Add to
013MA-501606WASHER£2.02 Add to
014MA-501793NYLOC NUT M8£0.73 Add to
015MA-501685BOLT M8 X 30£0.87 Add to
016MA-501606WASHER£2.02 Add to
017MA-574134SPACER-PULLEY, 8.5X19X4£6.89 Add to
018MA-574140BRACKET-CATCHER MOUNT, RH£15.68 Add to
019MA-574139BRACKET-CATCHER MOUNT, LH£15.68 Add to
020MA-501702SCREW, SET M6X16 HEX£0.59 Add to
021MA-501703WASHER FLT 6X14 X 1.2 Z£0.47 Add to
022MA-503973NUT, M6 HEX NYLOC FLA£0.59 Add to
023MA-501606WASHER£2.02 Add to
024MA-501793NYLOC NUT M8£0.73 Add to
025MA-964083BRACKET-HANDLE ADJUSTB£15.07 Add to
026MA-572447RETAINER-CONTROL CABLE£4.52 Add to
027MA-501606WASHER£2.02 Add to
