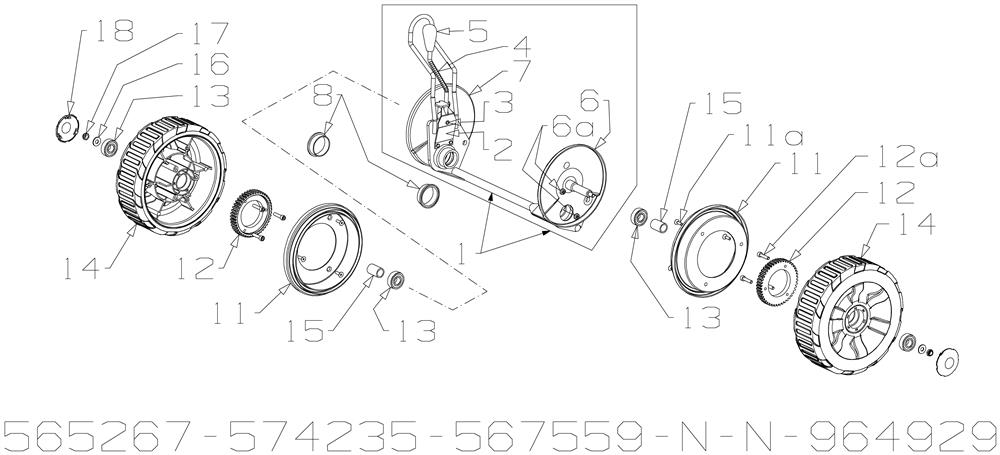

REAR WHEELS & AXLE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-765267AXLE ASSY-REAR SP,CONT£74.61 Add to
002MA-580649LEAF SPRING£4.86 Add to
003MA-503373RIVET£1.00 Add to
005MA-581729KNOB-HEIGHT, LEVER ADJUSTER£2.78 Add to
006MA-565262COVER DUST LH-CONTRACT£4.61 Add to
006AMA-503591SCREW£0.53 Add to
007MA-565263COVER DUST RH£4.61 Add to
008MA-580091BUSH REAR AXLE£1.38 Add to
009MA-567612SEAL-WHEEL, CONTRACTOR£11.03 Add to
011AMA-502267SCREW,CSK M5X12 ALLE£1.28 Add to
012MA-571272GEAR CONTR 45 TEETH£39.12 Add to
012AMA-503962SCREW,CAP M6X25 ALLE£2.35 Add to
013MA-567564WHEEL BEARING 21 CONT£16.39 Add to
014MA-767559WHEEL ASSY 235X75MM 21 CONTRACTOR£131.83 Add to
015MA-567639SPACER-WHEEL OD20 L30£14.89 Add to
016MA-501606WASHER£2.02 Add to
017MA-503831NUT, M8 HEX NYLOC X 6TH£0.81 Add to
018MA-567637HUB CAP CONTRACTOR BLK£2.13 Add to
