28" & 33" Mower Deck Final

Parts list

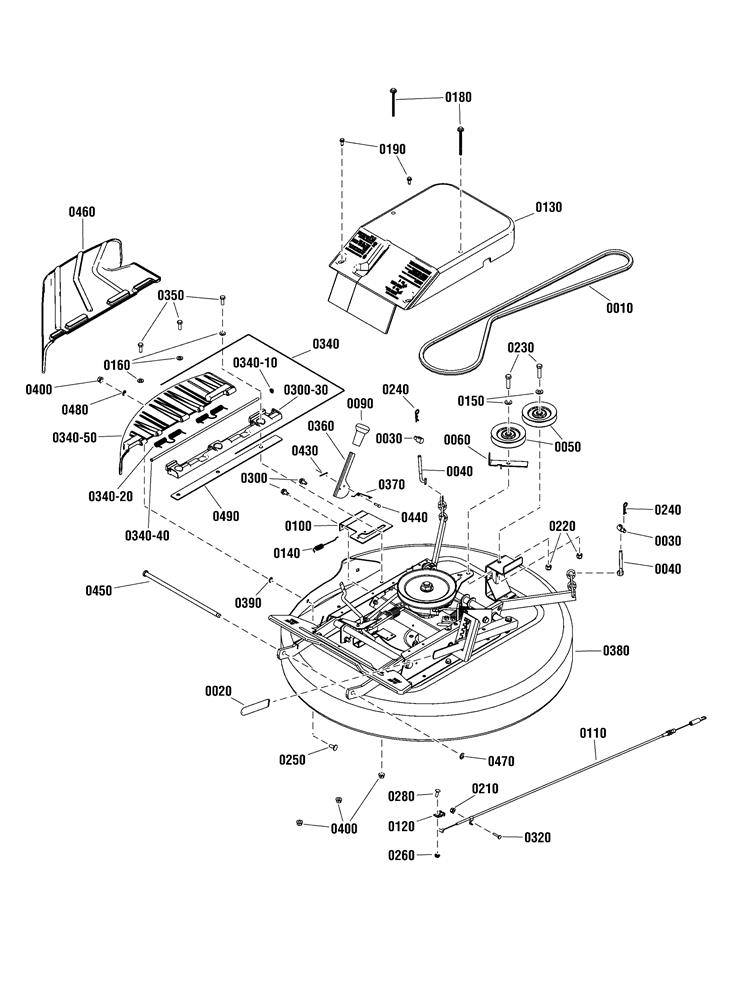

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-7022252YP BELT, SPINDLE £34.98 Add to
0040 SI-703827 LIFT LINK £9.04 Add to
0050 SI-7029624YP PULLEY, IDLER, SEAM WE £22.99 Add to
0060 SI-7032111YP RESTRICTOR, CLEAR £7.09 Add to
0100 SI-7600140YP CLUTCH PLATE ASSY, RLM £27.41 Add to
0110 SI-7073216YP CABLE, NRIM, REAR ENGI £21.80 Add to
0160 SI-703350 WASHER, 5/16 £2.75 Add to
0190 SI-703054 HWST, 1/4C X5/8 YZ £3.01 Add to
0210 SI-703412 NUT, NYLOCK, 10-24 £2.75 Add to
0220 SI-703117 NUT £2.75 Add to
0230 SI-703406 CAPSCREW,3/8-16X1.5 £3.18 Add to
0240 SI-703300 PIN 3/32 X 1.6 £2.75 Add to
0250 SI-703185 SCREW £3.01 Add to
0260 SI-780285MA HFLN, 1/4C YZ £3.86 Add to
0300 SI-703949 SCREW-HEX WSHR HD TAPT £3.01 Add to
0300-30 SI-7105346YP HINGE, CHUTE N/A POA
0340 SI-7105691YP COVER, MULCHING £55.40 Add to
0340-20 SI-7103309YP SPRING, REAR DOOR N/A POA
0340-50 SI-7105691YP COVER, MULCHING £55.40 Add to
0340-50 SI-7105870YP COVER, MULCHING N/A POA
0350 SI-703408 CAPSCREW, 5/16-18 £3.01 Add to
0360 SI-7046567BMYP HANDLE, BLADE ENGAGE N/A POA
0370 SI-7046648YP SPRING, TORSION £5.56 Add to
0380 SI-7061970YP 28" DECK £512.79 Add to
0380 SI-7061972YP 33" DECK £592.15 Add to
0390 SI-703297 RETAINER, BOLT, 5/16 £2.75 Add to
0400 SI-703115 NUT £2.75 Add to
0430 SI-703312 PIN, COTTER, 3/32X.75 £3.32 Add to
0460 SI-7105326YP CHUTE, DISCHARGE £89.59 Add to
