48" (122cm) RE mower deck - clutch & support Group

Parts list

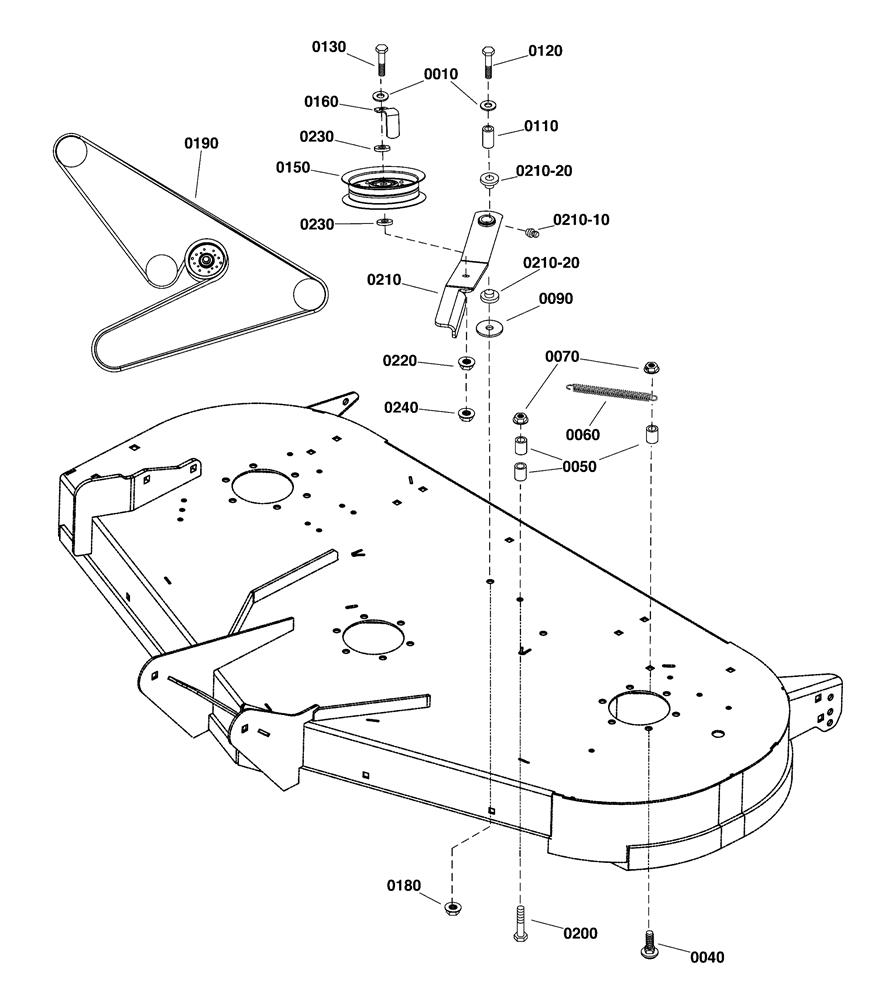

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0010 SI-703878 WASHER £2.75 Add to
0040 SI-703296 BOLT, 5/16-18X1.5 £3.18 Add to
0050 SI-1710703SM SPACER- 0.328IDX0 £6.83 Add to
0060 SI-1715435SM SPRING £9.47 Add to
0090 SI-703591 WASHER £3.43 Add to
0110 SI-1674669SM SPACER-0.39 IDX0 £7.77 Add to
0120 SI-703589 CAPSCREW, 3/8-16X2 £3.26 Add to
0150 SI-1757823YP PULLEY-IDLER 4" £23.25 Add to
0160 SI-1761267CJYP GUARD-BELT N/A POA
0180 SI-703893 NUT £4.11 Add to
0190 SI-1761268YP BELT £112.46 Add to
0210-20 SI-1676148SM BUSHING £5.64 Add to
0220 SI-703333 NUT £2.92 Add to
0240 SI-703893 NUT £4.11 Add to
