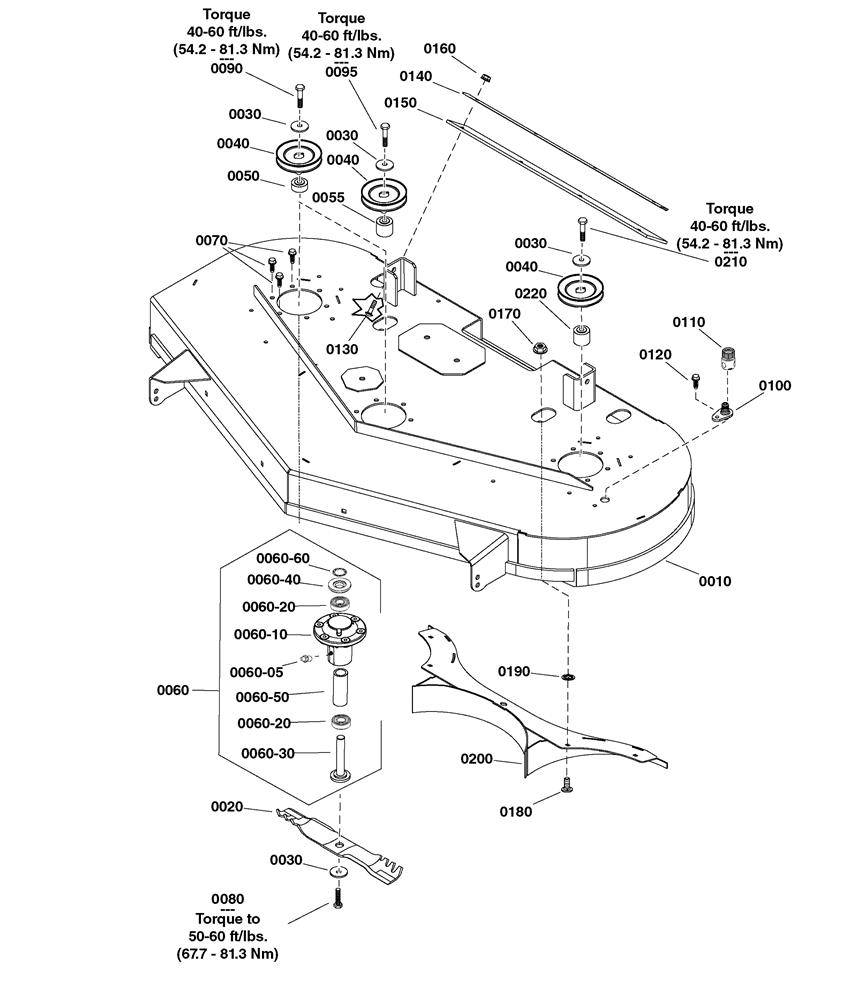

48" (122cm) RE mower deck - Housing, Arbors & Blade Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
0030 SI-1656916SM WASHER £6.92 Add to
0040 SI-1732951SM PULLEY-04.60 OD 1.000I £16.19 Add to
0060 SI-84003173 ARBOR ASSEMBLY N/A POA
0060-05 SI-1704314SM LUBE FITTING, .250 DR £4.45 Add to
0060-10 SI-84003653 HOUSING ASSEMBLY N/A POA
0060-20 SI-1735399YP BEARING, BALL, 20MM £10.15 Add to
0060-30 SI-84003170 SHAFT, SPINDLE £29.03 Add to
0060-40 SI-84003166 ARBOUR COVER £10.03 Add to
0060-60 SI-1960766YP RING, SELF LOCKING £3.69 Add to
0070 SI-704146 BOLT £3.35 Add to
0080 SI-1920676SM SCREW £4.20 Add to
0100 SI-1756247YP ADAPTOR WASH PORT £4.79 Add to
0110 SI-1756246YP WASHOUT CONNECTOR £5.98 Add to
0120 SI-703228 SCREW# £3.26 Add to
0140 SI-703409 NUT £2.75 Add to
0170 SI-703115 NUT £2.75 Add to
0180 SI-703185 SCREW £3.01 Add to
0190 SI-703297 RETAINER, BOLT, 5/16 £2.75 Add to
