Parts list

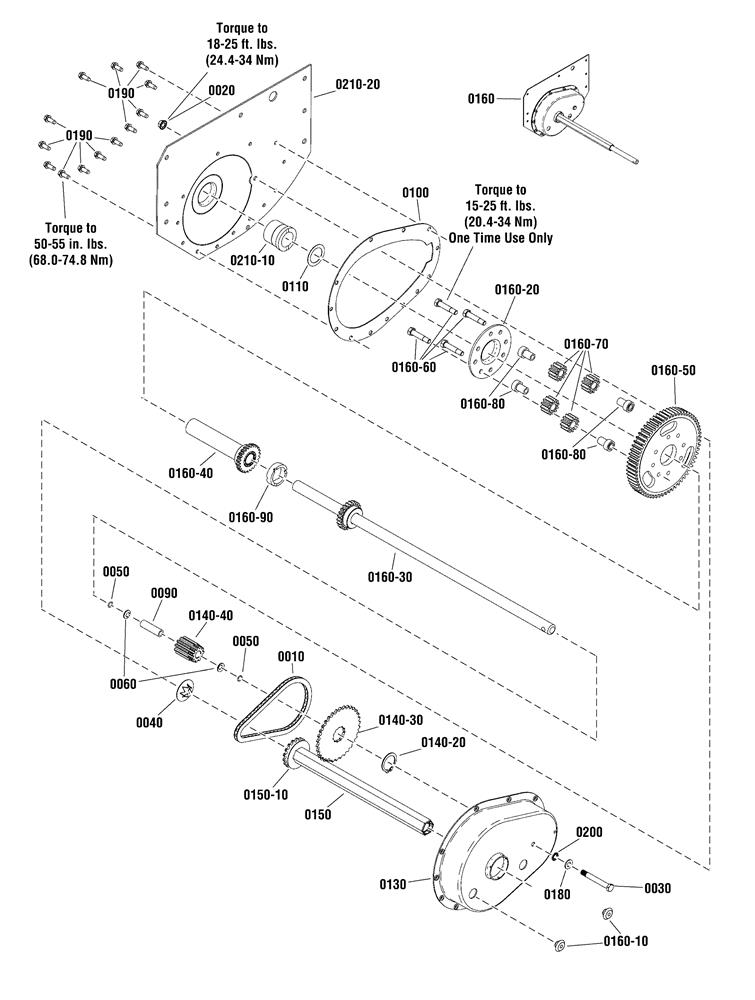

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
0010 | SI-7010941YP | CHAIN, CHAINCASE (100) | £8.87 | Add to |
0020 | SI-703123 | NUT | N/A | POA |
0030 | SI-7011042YP | HB, 5/16C X2-5/8 ZP | £4.93 | Add to |
0040 | SI-7011072YP | WASHER, THRUST | £6.07 | Add to |
0050 | SI-7011156YP | O-RING, 5/16 | £3.09 | Add to |
0060 | SI-7011782YP | BW, .343X.625X.050 | £3.60 | Add to |
0090 | SI-7021128YP | SPACER, DIFF. CASE | £6.58 | Add to |
0100 | SI-7028762YP | GASKET, TRANSMISSION | £15.25 | Add to |
0110 | SI-7031079YP | WASHER, THRUST | £5.64 | Add to |
0130 | SI-7037279YP | CASE, TRANSMISSION | £51.91 | Add to |
0140-30 | SI-7021129YP | SPROCKET, 34T, 3/8P | £11.77 | Add to |
0140-40 | SI-7200128YP | GEAR, 11 TOOTH | £14.15 | Add to |
0150 | SI-7051584YP | HEX TUBE ASMY, DX | £52.67 | Add to |
0150-10 | SI-7010988YP | WASHER, NYLON | £3.52 | Add to |
0160-10 | SI-7011024YP | PLUG | £7.43 | Add to |
0160-30 | SI-7075479YP | AXLE & SPACER KIT | N/A | POA |
0160-40 | SI-7600137YP | KIT, SHORT AXLE, 23T | £70.02 | Add to |
0160-50 | SI-7021158YP | GEAR, 63T 10P | £83.21 | Add to |
0160-60 | SI-7012333YP | HB, NYLOK, GR5 BLACK | £5.05 | Add to |
0160-70 | SI-7021127YP | GEAR, 12T 12P, HEAT TR | £18.65 | Add to |
0180 | SI-703350 | WASHER, 5/16 | £2.75 | Add to |
0190 | SI-703054 | HWST, 1/4C X5/8 YZ | £3.01 | Add to |
0210-10 | SI-7012296YP | BEARING, AXLE, PM | £13.81 | Add to |
