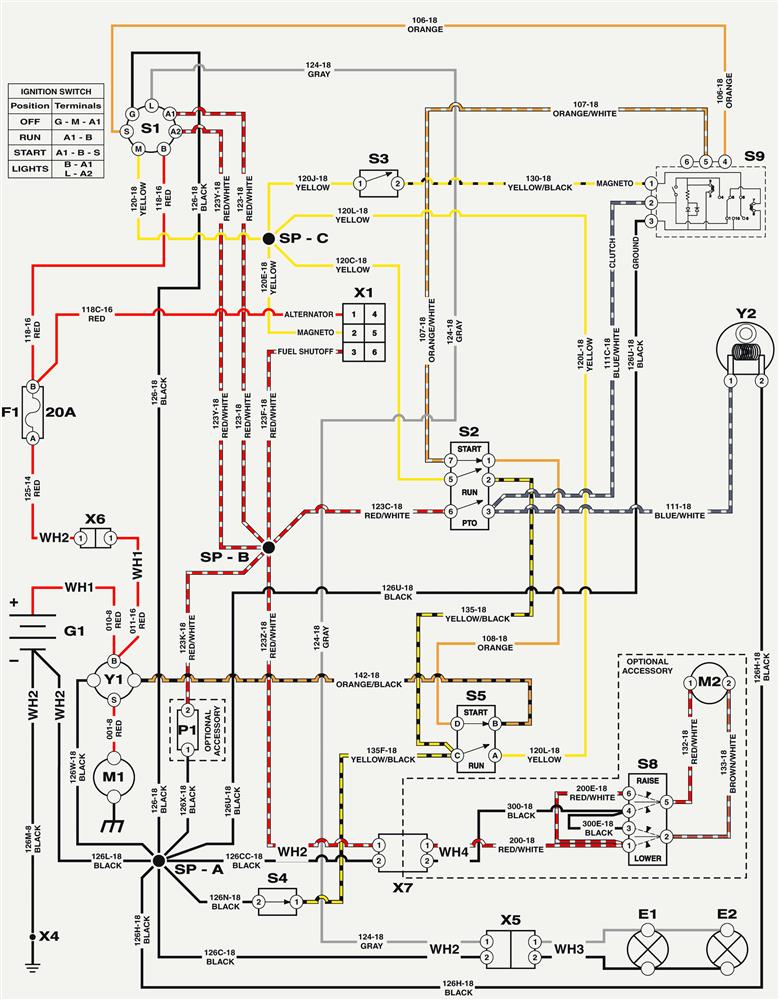

Electrical Schematic

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
M2	SI-1761788YP	MOTOR-ELECTRIC	£115.27	Add to
P1	SI-1731185SM	HOUR METER	£54.80	Add to
S1	SI-1761507YP	SWITCH- IGNITION	£34.07	Add to
S3	SI-1720411SM	SWITCH-PUSH BUTT	£10.06	Add to
S4	SI-1714771SM	SW INT LOCK SEAT	£13.81	Add to
S5	SI-7022886YP	PEDAL SWITCH	£11.43	Add to
S8	SI-1761475YP	SWITCH	£41.24	Add to
S9	SI-1761897YP	SWITCH	£33.28	Add to
Y1	SI-1755381YP	SOLENOID	£19.85	Add to
Y2	SI-1760986YP	CLUTCH	£373.01	Add to
