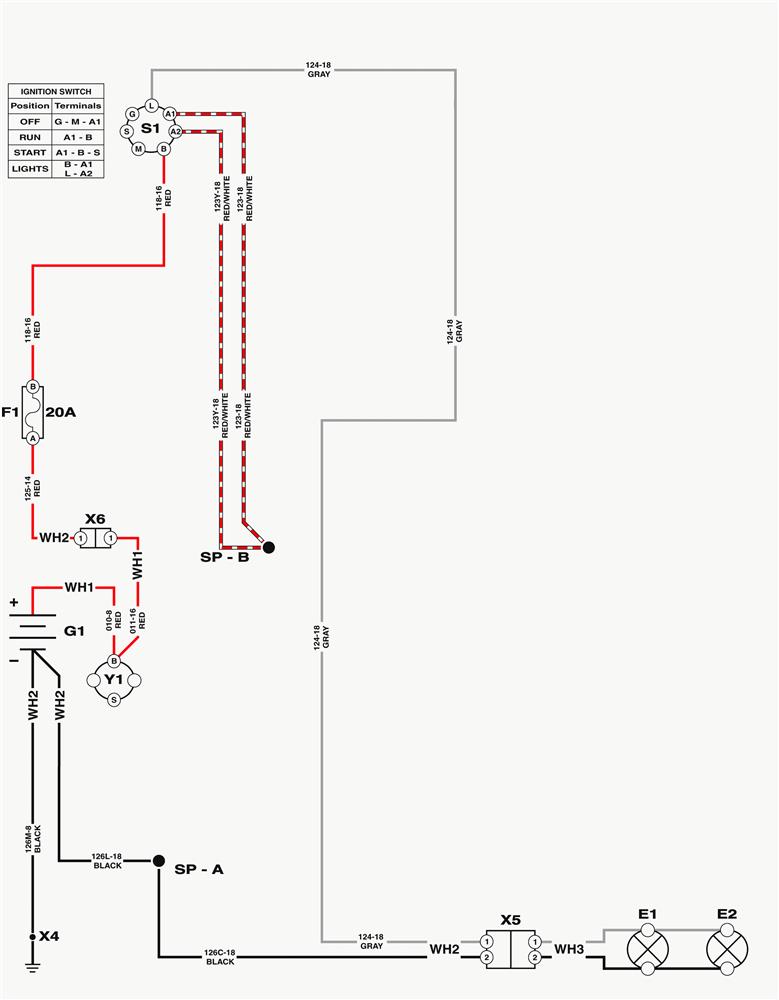

Electrical Schematic - headlight circuit

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
S1SI-1761507YPSWITCH- IGNITION£34.07 Add to
Y1SI-1755381YPSOLENOID£19.85 Add to
