Engine Group - 656cc Briggs & Stratton

Parts list

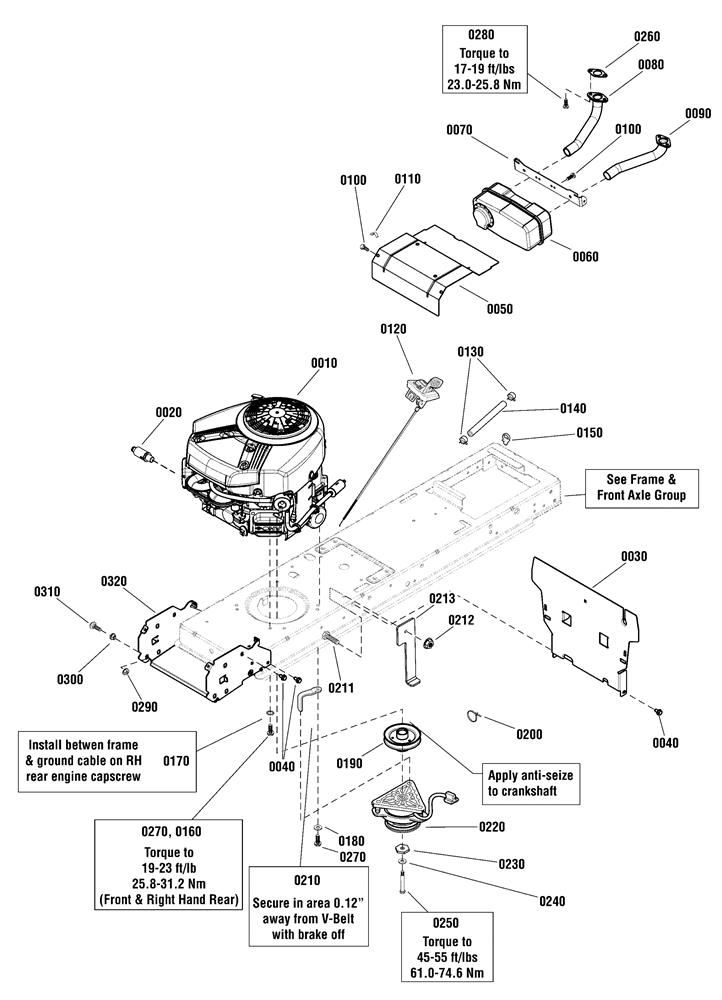

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0020SI-1750159YPVALVE, DRAIN£12.87 Add to
0040SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0090SI-1727980PIPE-EXHAUST 1.125OD W£53.52 Add to
0100SI-80002738SCREW£4.14 Add to
0110SI-2834683CLIP, SPEED WIRE£3.99 Add to
0120SI-1750217YPCONTROL, THROTTLE£48.68 Add to
0150SI-1730268CLIP-HOSE BLACK PLASTI£3.99 Add to
0160SI-1927187SCREW-HEX WSHR HD TAPT£6.48 Add to
0170SI-2820427LOCKWASHER-EXTERNAL TO£3.99 Add to
0180SI-703878WASHER£2.75 Add to
0190SI-1732576SMPULLEY & HUB ASMY-ENG£28.01 Add to
0212SI-703409NUT£2.75 Add to
0230SI-1708264WASHER-HEX 0.453£7.89 Add to
0240SI-1960769YPWASHER, BELLEVILLE£4.20 Add to
0250SI-1960649CAPSCREW-HEX HD 7/16-2£4.26 Add to
0270SI-2828635SCREW£3.99 Add to
0290SI-703409NUT£2.75 Add to
0300SI-1728086PIVOT-HOOD PWDR METAL£5.49 Add to
0310SI-703800RHSSNB, 5/16C X1 GR5 Y£3.09 Add to
