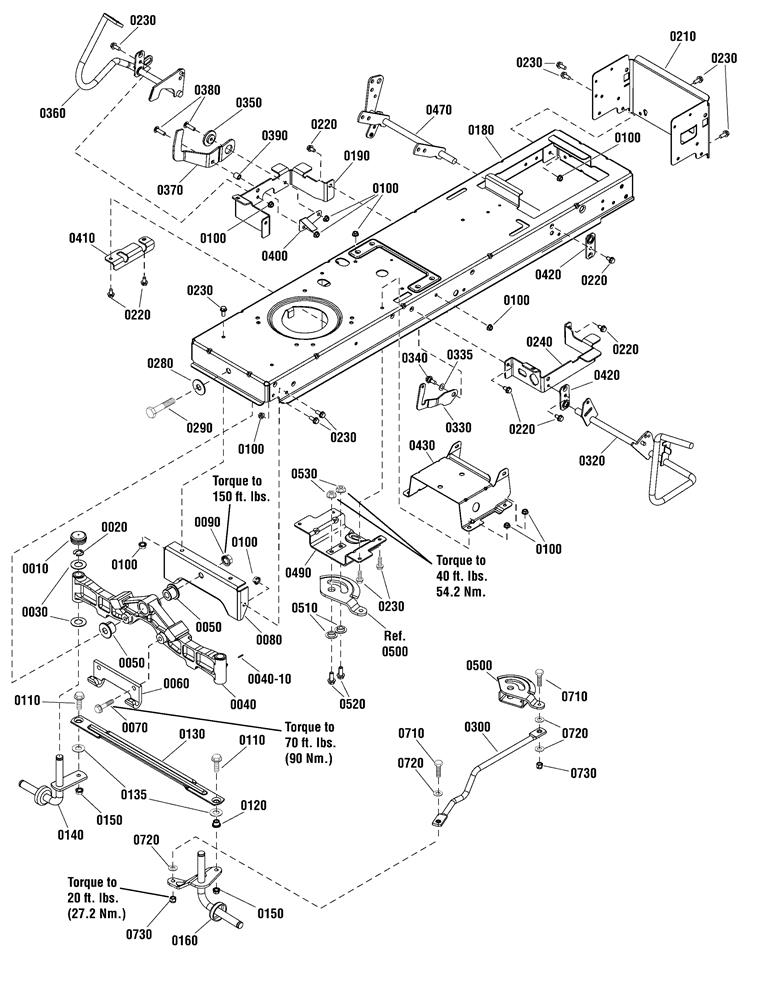

Frame & Front Axle Group

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0020	SI-1611710SM	RING-KLIPRING EXT FOR	£3.69	Add to
0030	SI-2860183SM	WASHER-0.750(0.83IDX1.	£4.66	Add to
0040-10	SI-1704314SM	LUBE FITTING, .250 DR	£4.45	Add to
0050	SI-1730186SM	BUSHING -AXLE PIVOT PM	£7.68	Add to
0060	SI-1721918ASM	HOOK-J VIPER-BLACK	£20.61	Add to
0070	SI-1960652SM	SCREW - HEX WZ LOCK FLNG	£8.38	Add to
0080	SI-1727902SM	PLATE, AXLE	£34.47	Add to
0090	SI-2860646SM	NUT-HEX FLANGE 5/8-11	£7.10	Add to
0100	SI-703409	NUT	£2.75	Add to
0110	SI-1960032SM	SCREW-HEX HD .37	£5.90	Add to
0120	SI-1731912SM	BUSHING-0.382ID 0.623O	£3.69	Add to
0130	SI-1751964BMYP	TIE ROD	£33.65	Add to
0135	SI-1960703SM	WASHER-0.625(0.66IDX1.	£3.09	Add to
0140	SI-1727872ASM	SPINDLE & CUP ASMY-RH	£112.21	Add to
0160	SI-1751922YP	SPINDEL ASSY	£116.21	Add to
0230	SI-703354	SCREW	£3.09	Add to
0280	SI-1960035SM	WASHER-0.625(0.64IDX1	£4.54	Add to
0290	SI-2860744SM	CAPSCREW-HEX HD 5/8	£10.01	Add to
0300	SI-1738051YP	DRAG LINK ASSEMBLY	£50.29	Add to
0320	SI-1736404AYP	PEDAL ASSY, BRAKE	£129.47	Add to
0330	SI-1735595ASM	LATCH, BRAKE LOCK	£10.40	Add to
0340	SI-703851	BOLT, 5/16-18X1.15	£3.94	Add to
0350	SI-1727935SM	SPACER-PIVOT 0.330ID 1	£5.47	Add to
0360	SI-1736714AYP	PEDAL ASMY-FORWARD HU	£75.13	Add to
0390	SI-1728024SM	SPACER-FOOT PEDAL P M	£4.45	Add to
0470	SI-1737957YP	WELD, LIFT SHAFT ASSY.	£52.67	Add to
0490	SI-1727940SM	BRKT SECTOR SUPPORT	£24.95	Add to
0500	SI-1751110YP	GEAR, STEERING	£26.82	Add to
0510	SI-1728122SM	SPACER-SECTOR GEAR 0.3	£4.37	Add to
0710	SI-703570	CAPSCREW, .31-18X1.25	£3.84	Add to
0720	SI-1919326SM	WASHER	£3.52	Add to
