Frame & Front Axle Group

Parts list

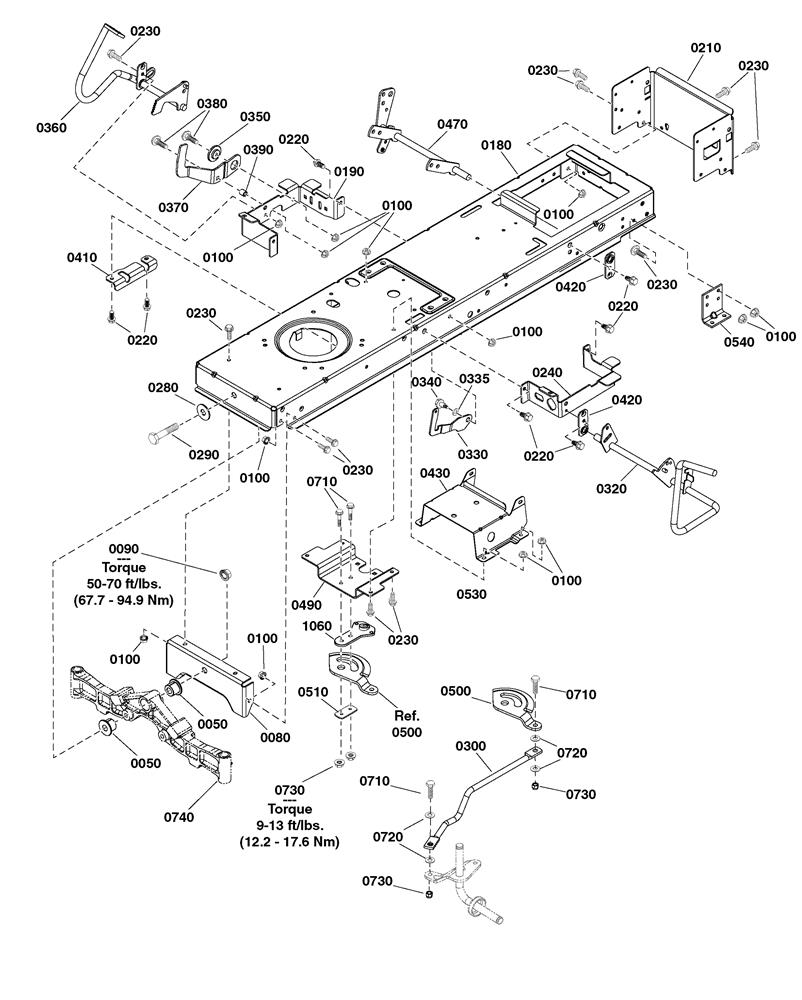

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0050SI-1730186SMBUSHING -AXLE PIVOT PM£7.68 Add to
0080SI-1727902SMPLATE, AXLE£34.47 Add to
0090SI-2860646SMNUT-HEX FLANGE 5/8-11£7.10 Add to
0100SI-703409NUT£2.75 Add to
0220SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0230SI-703354SCREW£3.09 Add to
0280SI-1960035SMWASHER-0.625(0.64IDX1£4.54 Add to
0290SI-2860744SMCAPSCREW-HEX HD 5/8£10.01 Add to
0300SI-1738051YPDRAG LINK ASSEMBLY£50.29 Add to
0320SI-1736404AYPPEDAL ASSY, BRAKE£129.47 Add to
0340SI-703851BOLT, 5/16-18X1.15£3.94 Add to
0350SI-1727935SMSPACER-PIVOT 0.330ID 1£5.47 Add to
0360SI-1736714AYPPEDAL ASMY-FORWARD HU£75.13 Add to
0390SI-1728024SMSPACER-FOOT PEDAL P M£4.45 Add to
0410SI-885591YPBRACKET , PEDAL PIVOT£18.37 Add to
0470SI-1737957YPWELD, LIFT SHAFT ASSY.£52.67 Add to
0500SI-1751110YPGEAR, STEERING£26.82 Add to
0530SI-703185SCREW£3.01 Add to
0540SI-1727903ASMSUPPORT-TRANSM REGENT£9.21 Add to
0710SI-703570CAPSCREW, .31-18X1.25£3.84 Add to
0720SI-1919326SMWASHER£3.52 Add to
0730SI-015X88MANUT FLANGE£3.77 Add to
1060SI-1761010YPSUPPORT£30.87 Add to
