Lift Group

Parts list

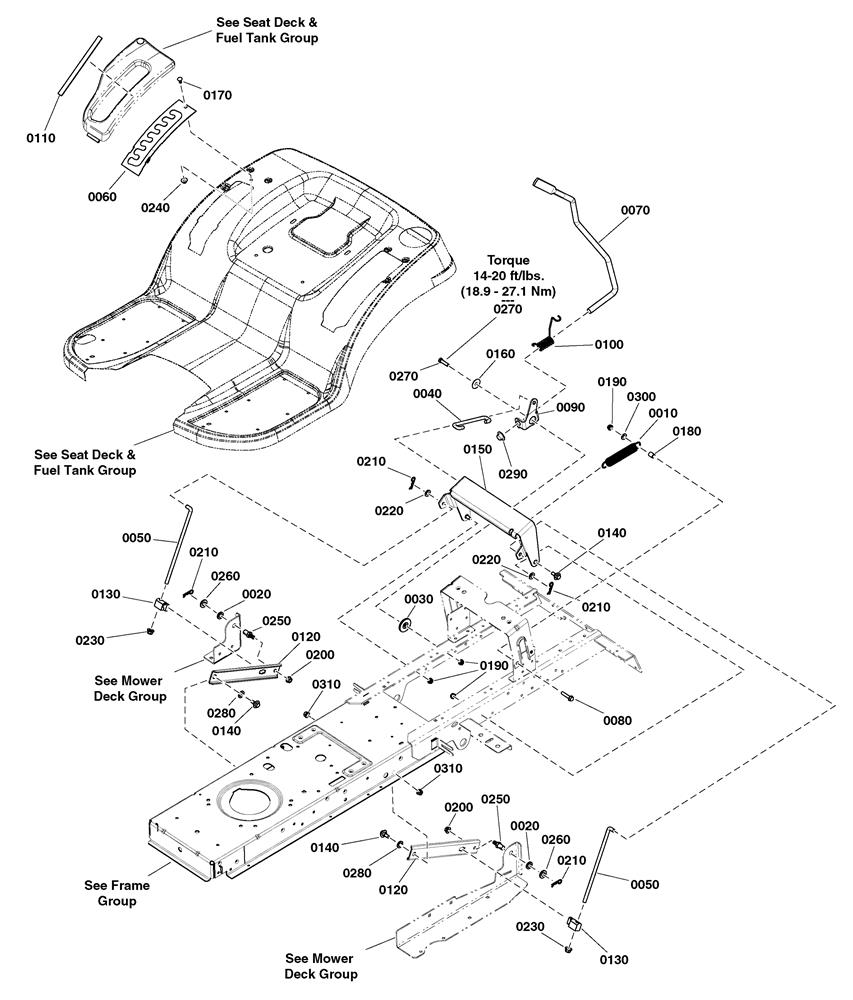

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0010SI-1715435SMSPRING£9.47 Add to
0030SI-1727935SMSPACER-PIVOT 0.330ID 1£5.47 Add to
0040SI-1727954SMROD-, 375DIA 5.43£11.58 Add to
0050SI-1727955SMROD-.375DIA 10.00 LG£12.87 Add to
0070SI-1728070SMROD-.625DIA 18.8 LG LI£33.11 Add to
0080SI-704318SCREW, 5/16- 18X1- 1/2£6.25 Add to
0100SI-1729652SMTORSION SPRING£5.81 Add to
0110SI-1730264SMDECAL-HEIGHT OF CUT£11.77 Add to
0120SI-1731417BMYPARM£15.64 Add to
0130SI-1731894SMTRUNNION - PWDR METAL£11.10 Add to
0140SI-1732426SMBOLT-SHLDR 5/16-18 0.5£4.62 Add to
0160SI-1960044SMWASHER-0.312(0.33IDX1£3.94 Add to
0160SI-1960044SMWASHER-0.312(0.33IDX1£3.94 Add to
0180SI-1710703SMSPACER- 0.328IDX0£6.83 Add to
0190SI-703409NUT£2.75 Add to
0200SI-703333NUT£2.92 Add to
0210SI-703300PIN 3/32 X 1.6£2.75 Add to
0230SI-703158NUT£2.92 Add to
0240SI-703161NUT£2.75 Add to
0250SI-704054PIN£7.43 Add to
0260SI-703853WASHER, 0.516IDX1OD£3.09 Add to
0270SI-703570CAPSCREW, .31-18X1.25£3.84 Add to
0280SI-703128WASHER£6.65 Add to
0290SI-771009NUT-PUSH FOR .625 DIA£4.54 Add to
0300SI-1919326SMWASHER£3.52 Add to
0310SI-703115NUT£2.75 Add to
