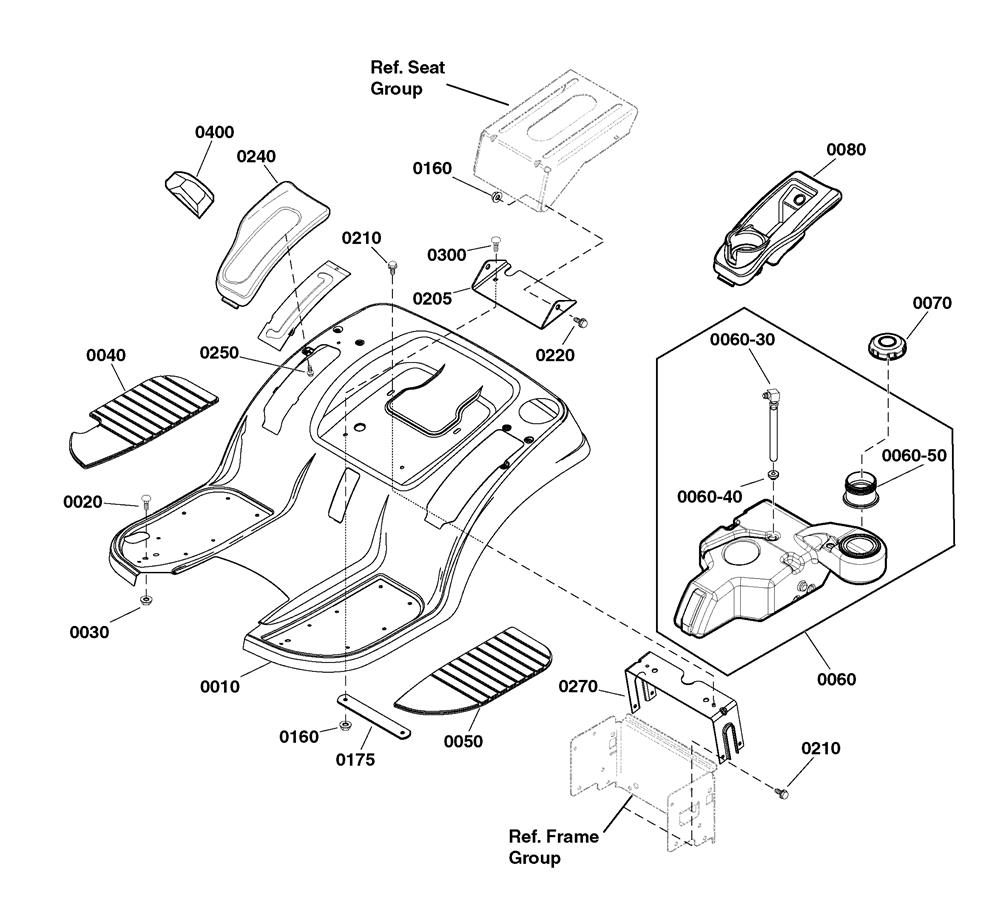

Seat Deck & fuel Tank Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0010SI-1727264DSMDECK-SEAT W/FOOTRESTS£674.99 Add to
0020SI-703185SCREW£3.01 Add to
0030SI-703409NUT£2.75 Add to
0060SI-1738932YPTANK, FUEL£322.20 Add to
0060-40SI-1654930SMBUSHING£4.71 Add to
0070SI-5101651SMFUEL TANK CAP£24.86 Add to
0160SI-703115NUT£2.75 Add to
0210SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0220SI-703851BOLT, 5/16-18X1.15£3.94 Add to
0240SI-1739537YPPOD, RH£19.59 Add to
0250SI-1960536SMSCREW, HEX WSHR HD£6.44 Add to
0400SI-1722302SMGRIP£7.09 Add to
