Transmission Group

Parts list

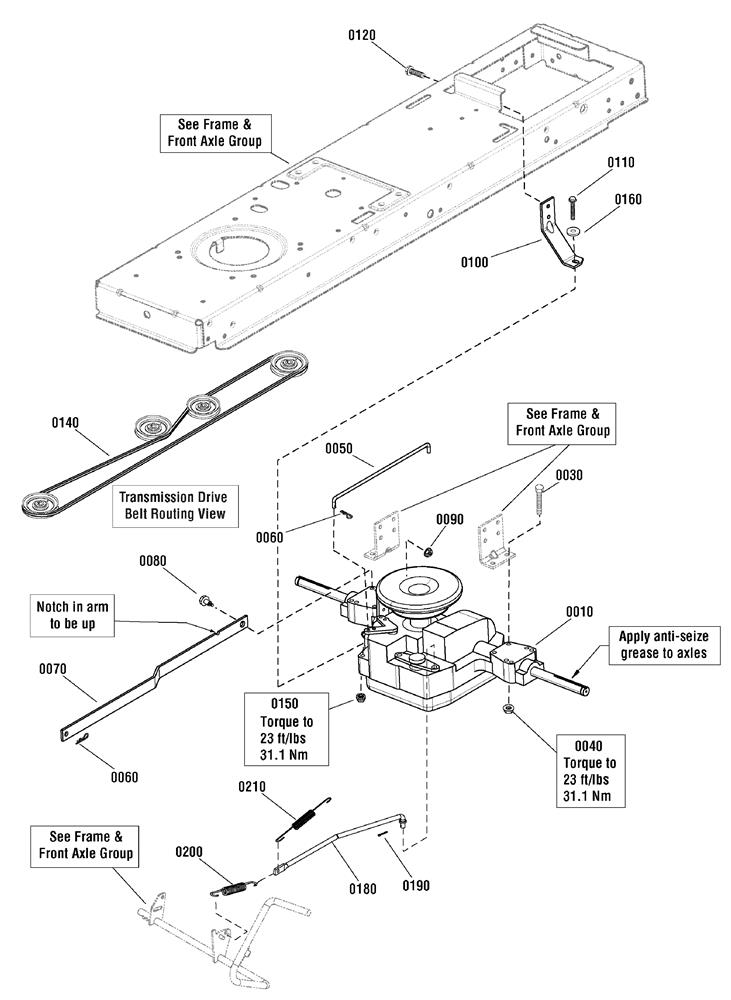

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0010SI-1729589TRANSMISSION ASMY-£1,176.10 Add to
0010SI-1729588TRANSMISSION ASMY-HUNT£1,843.15 Add to
0040SI-703409NUT£2.75 Add to
0060SI-703430PIN, HAIR£5.08 Add to
0090SI-1935048NUT-HEX FLANGE .£4.67 Add to
0110SI-7091908HHCS 5/16C X1-3/4 GR5£6.20 Add to
0120SI-703228SCREW#£3.26 Add to
0150SI-1960686FLANGE NUT£4.67 Add to
0190SI-1918447COTTER PIN£4.67 Add to
0200SI-1731262SPRING-EXTN 0.70 ODX 0£18.48 Add to
0210SI-1721995SMSPRING-EXTN .62O£5.81 Add to
