Trasmission service parts - tuff torq K46BL

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

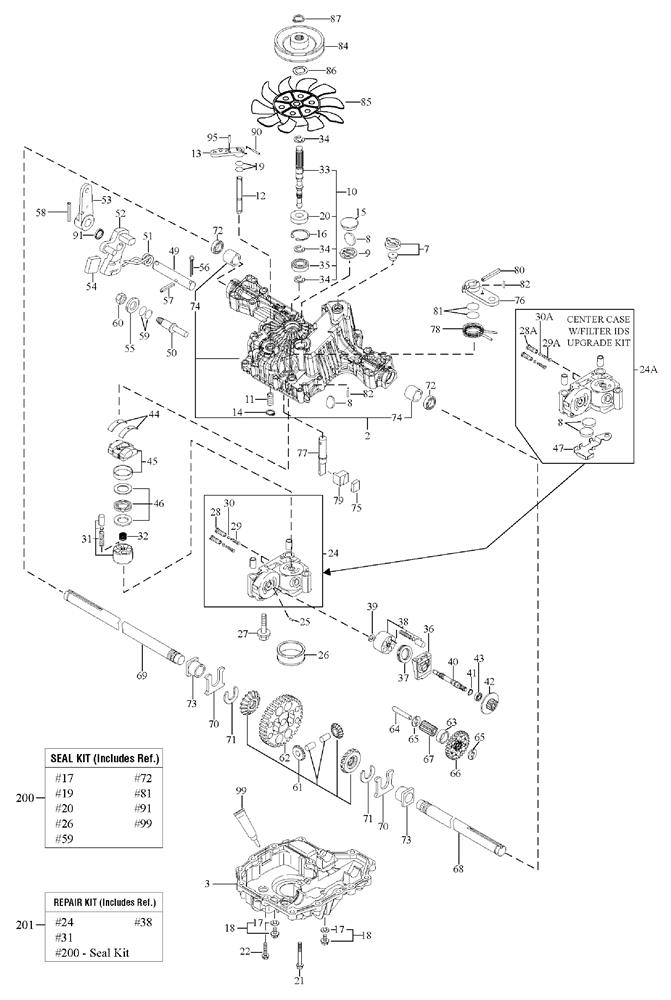

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001SI-1729589TRANSMISSION ASMY-£1,176.10 Add to
007SI-1718052SMVENT VALVE 15 194859-2£25.43 Add to
016SI-1708650RING 35 22252-00035£5.11 Add to
020SI-7073794SEAL TT£45.14 Add to
034SI-1718076RING E15 K56 TRA£3.79 Add to
035SI-1708673BEARING 24101-06020£28.35 Add to
058SI-1718100PIN 6.0AX4.0 K 22351-0£4.62 Add to
059SI-1707879O RING£3.99 Add to
072SI-1718111SEAL 19X32X8 K56£25.19 Add to
073SI-1718110BUSHING 19X21 K5£6.48 Add to
076SI-7073752ARM, BRAKE£52.98 Add to
082SI-1724311PIN-SPRING 223510-400£3.99 Add to
084SI-1732918SMPULLEY D£47.15 Add to
085SI-1724314R/B 7-3753N/A POA
087SI-1724316SMRING-SNAP 19215£4.20 Add to
