Iseki

Very lightweight, compact and highly manoeuvrable in tight areas, the TM Range of tractors are ideally suited to gardens, schools and small sports turf areas like tennis courts. With these attributes the TM can also be found maintaining artificial turf, where its light footprint is an advantage.

The new ISEKI TM3217 is a versatile 19hp diesel compact tractor with a three range hydrostatic transmission. The ISO-mounted operator’s platform combined with ergonomically positioned controls ensures operator comfort during extended working periods. The 3-point linkage has a lift capacity of 600kg.

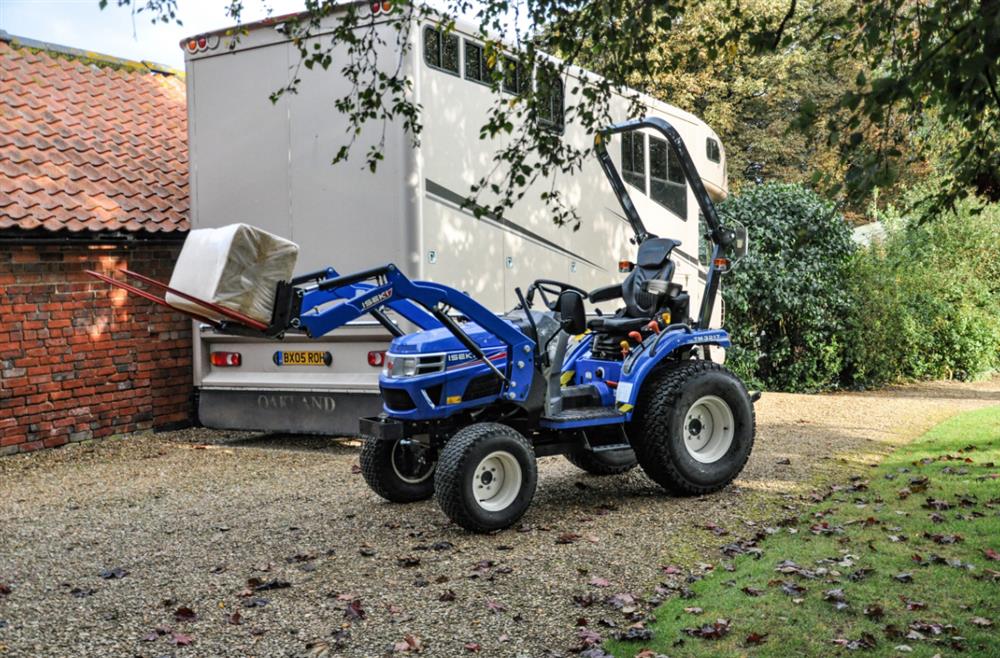

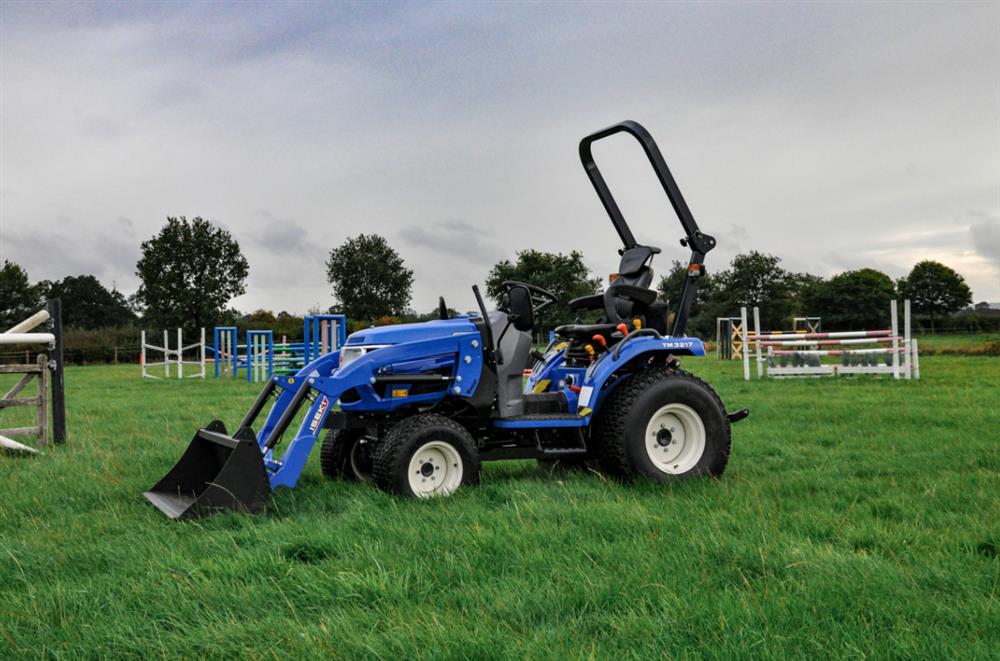

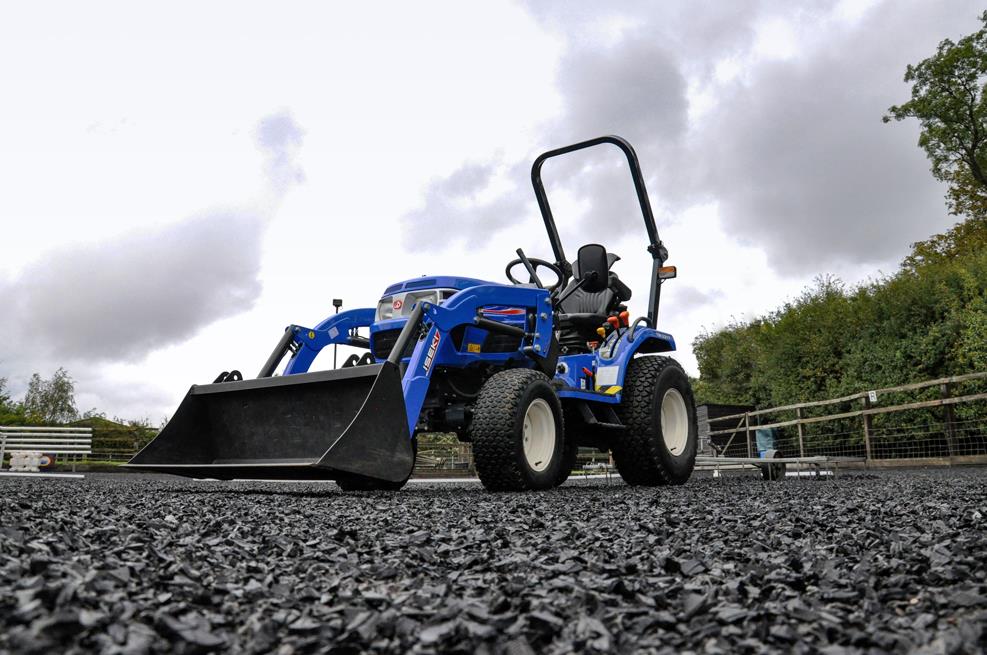

The tractor features as standard, independent rear-PTO with soft start, mid-PTO, two double-acting auxiliary valves, weight frame and a choice of AG or Turf tyres. The ISEKI TM3217 shares the same chassis, powered by a 19hp diesel engine. A front loader is optionally available for both models.

Key Features

19hp @ 2600rpm 600kg or 800kg with high capacity lift kit (TM3267 only) HST ISO Mounted operators platform.

Free Local Delivery Within 30 Miles by our own Driver to your door fully built and ready to cut grass

Power Engine: Type Diesel indirect injection, overhead valve

Displacement 1123cc

No of cylinders 3

Power 14.3kW (19hp) at 2600rpm

Fuel capacity 28ltr (7.4gal)

Rated engine speed 2600rpm

Transmission HST

No of speeds 3

Forward 0-23.2kph (0-14.4mph)

Driven Wheels 4WD

Differential Lock Standard

Brakes Type Wet discs

Tyres Type Ag or Turf

Front 6-12 (Ag) 24x8.50-12 (Turf)

Rear 9.5-16 (Ag) 315/75D-15 (Turf)

Rear PTO 1 speed 540 @ 2475rpm

Mid PTO 1 speed 2000 @ 2461rpm

PTO Shaft 1 3/8” 6-spline

Hydraulic Lift capacity 600kg (1332lb)

Pump Capacity ltr/m 20.0

Position Control Standard

Rear linkage type Category 1

ROPS Type Rear foldable

Dimensions Length 2.815m (110.8”)

Width 1.1m (43.7”) (Ag tyres) 1.295m (51”) (Turf tyres)

Height 2.39m

Weight 835kg (1841lb)

Ground Clearance 0.25m (9.8”)




ONLY £18907.20
