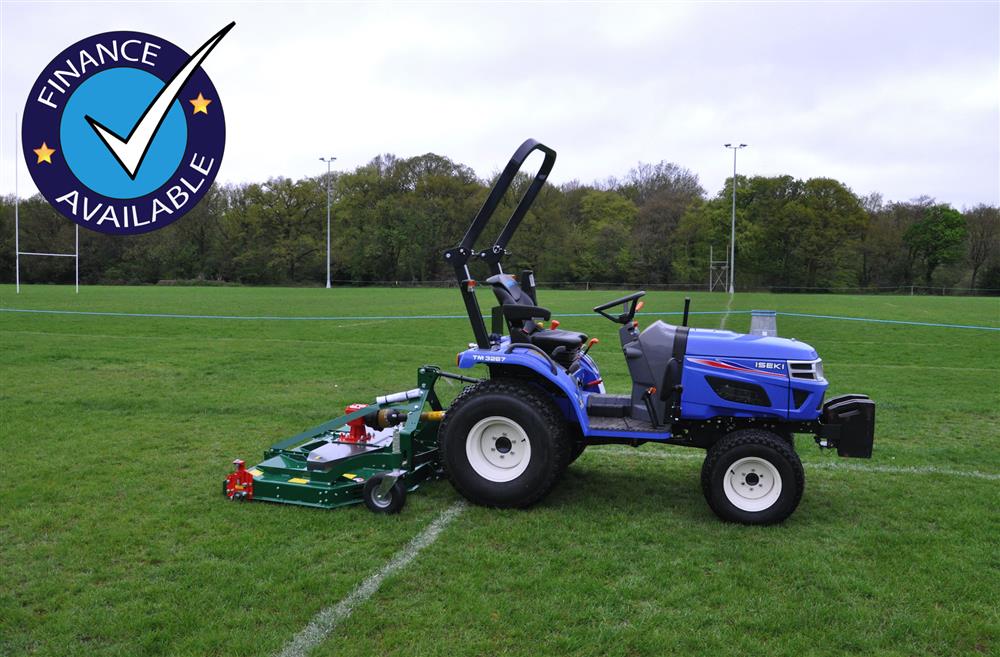

Iseki TM3267 Mech 25 hp Diesel Compact Tractor

Iseki TM3267 Mech 25 hp Diesel Compact Tractor
Iseki TM3267 Mech 25 hp Diesel Compact TractorIseki TM3267 Mech 25 hp Diesel Compact TractorIseki TM3267 Mech 25 hp Diesel Compact Tractor
Iseki

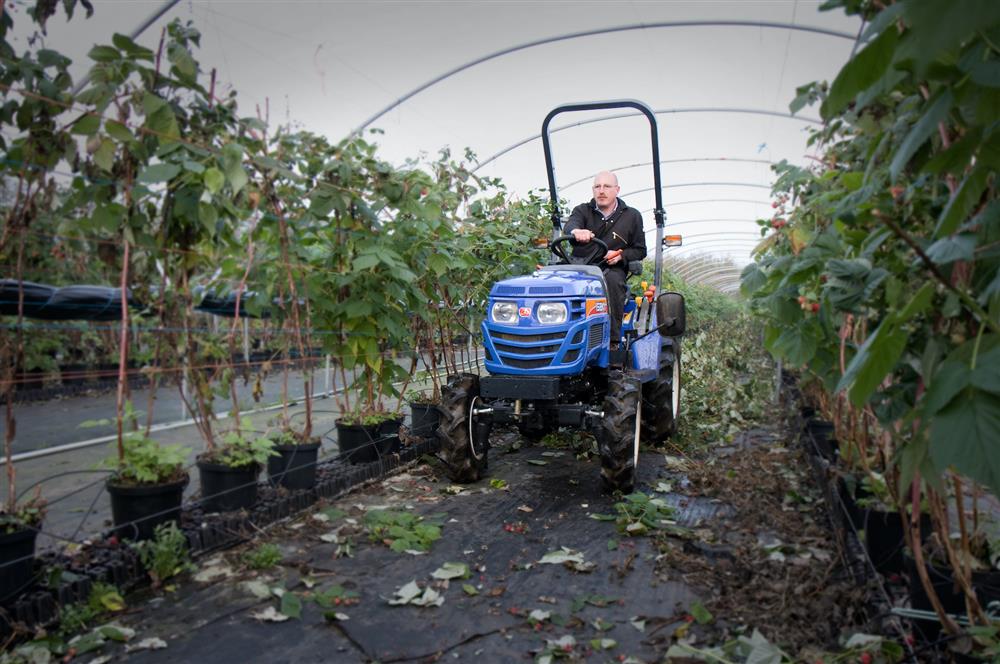

Very lightweight, compact and highly manoeuvrable in tight areas, the TM Range of tractors are ideally suited to gardens, schools and small sports turf areas like tennis courts. With these attributes the TM can also be found maintaining artificial turf, where its light footprint is an advantage.

The new ISEKI TM3267 is a versatile 25hp diesel compact tractor with a F8/R8 mechanical transmission. The ISO-mounted operator’s platform combined with ergonomically positioned controls ensures operator comfort during extended working periods. The 3-point linkage has a lift capacity of 600kg or 800kg (TM3267 only) when fitted with the high-capacity lift kit.

The tractor features as standard, a rear-PTO, two double acting valves, mid-PTO, two double-acting auxiliary valves (one for TM3217), weight frame and a choice of AG or Turf tyres. The ISEKI TM3217 shares the same chassis, powered by a 19hp diesel engine. A front loader is optionally available for both models.

Key Features

24.4hp @ 2500rpm 600kg or 800kg with high capacity lift kit (TM3267 only) Mechanical ISO Mounted operators platform

Free Local Delivery Within 30 Miles by our own Driver to your door fully built and ready to cut grass

Power Engine: Type Diesel indirect injection, overhead valve

Displacement 1498cc

No of cylinders 3

Power 18.2kW (24.4hp) at 2500rpm

Fuel capacity 28ltr (7.4gal)

Rated engine speed 2500rpm

Transmission Main Clutch F8/R8

No of speeds 8

Forward 0.5-24.4kph (0-15.2mph)

Driven Wheels 4WD

Differential Lock Standard

Brakes Type Wet discs

Tyres Type Turf or Ag

Front 6-12 (Ag) 24x8.50-12 (Turf)

Rear 9.5-16 (Ag) 315/75D-15 (Turf)

Rear PTO 1 speed 540 @ 2475rpm

Mid PTO 1 speed 2000 @ 2461rpm

PTO Shaft 1 3/8” 6-spline

Hydraulic Lift capacity 600kg (1332lb) or 800kg (1764lb) with high capacity lift kit

Pump Capacity ltr/m 20.8

Position Control Standard

Rear linkage type Category 1

ROPS Type Rear foldable

Dimensions Length 2.88m (113.4”)

Width 1.1m (43.7”) (Ag tyres) 1.295m (51”) (Turf tyres)

Height 2.39m

Weight 870kg (1918lb)

Ground Clearance 0.25m (9.8”)


ONLY £20145.60
