Body Works

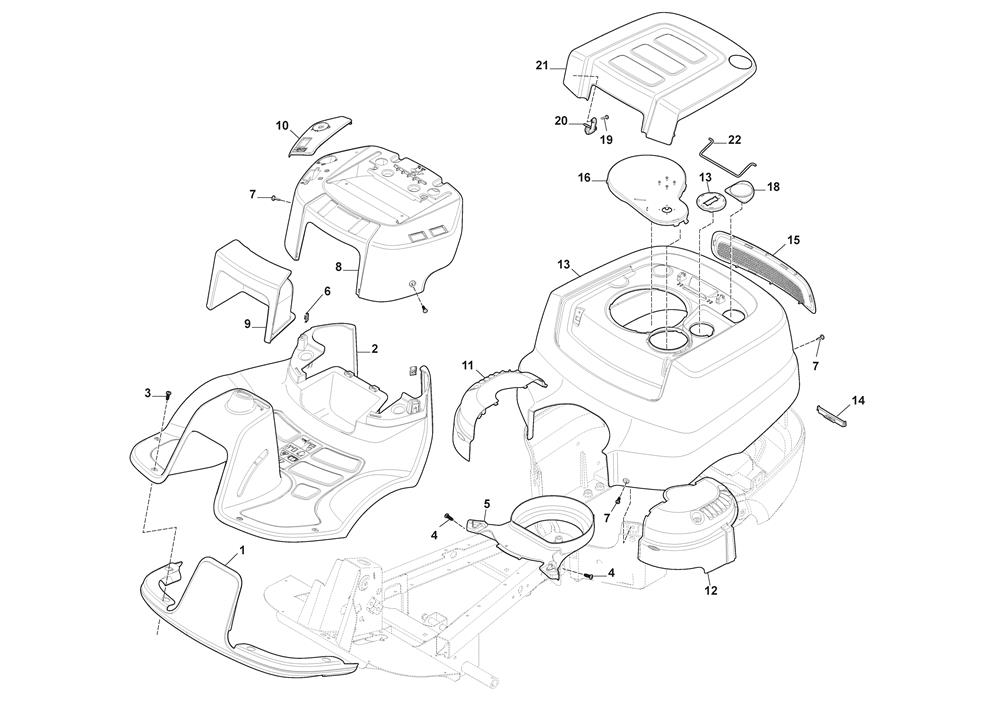

Body Works assembly details for Stiga E-Park 220 (2F5828001/ST1) 2020 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337502506/0	FRONT BUMPER (YELLOW)	£19.61	Add to
002	337110316/0	FOOTBOARD COVER [GREY]	£160.41	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	9893-0616-16	SCREW M6 x 16	£2.47	Add to
005	337060040/0	CLEVIS PROTECTION BELT	£9.82	Add to
006	1134-4176-01	CLIP	£5.19	Add to
007	9893-0616-16	SCREW M6 x 16	£2.47	Add to
008	337110368/0	CENTRAL COVER PKEL [GREY]	£60.24	Add to
009	337207101/0	HOLDER COVER	£15.36	Add to
011	337060038/0	RH YELLOW STIGA ENGINE PROTECTION COVER	£14.73	Add to
012	337060039/0	LH YELLOW STIGA ENGINE PROTECTION COVER	£14.73	Add to
013	337076804/0	ENGINE COVER PKEL [YELLOW]	£283.79	Add to
014	337033802/0	ENGINE COVER STOP PKEL [YELLOW]	£6.55	Add to
015	337110314/0	REAR COVER	£15.54	Add to
016	337120287/0	YELLOW STIGA INTERF. PLUG RECHARGE SOCK.	£7.63	Add to
017	337120285/0	YELLOW STIGA PLUG INTERFACE BD	£5.46	Add to
018	337120286/0	YELLOW STIGA FUEL PLUG	£7.10	Add to
019	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
020	1137-0861-01	SPRING LATCH	£2.47	Add to
021	337110367/0	ENGINE COVER	£27.27	Add to
022	1137-0860-01	HINGE	£6.14	Add to
