Chassis

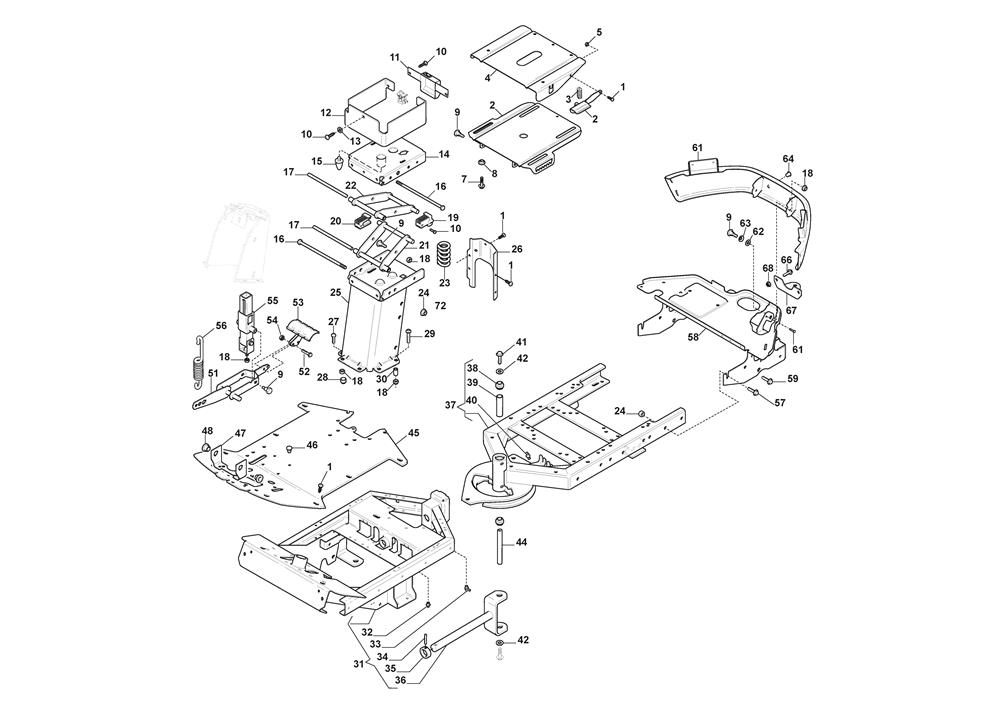

Chassis assembly details for Stiga Park 740 PWX (2F6230621/S16) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9893-0616-16	SCREW M6 x 16	£2.47	Add to
002	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
003	1134-3262-01	SPRING	£8.73	Add to
004	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
005	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
006	387773513/0	LOWER SLIDE PLATE	£95.67	Add to
007	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
008	1134-6078-01	FLANGE WASHER	£5.87	Add to
009	1134-0240-00	SCREW	£9.14	Add to
010	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
011	387602511/0	OPC MICRO PROTECION COVER	£35.71	Add to
012	1137-0038-01	COVER	£41.10	Add to
013	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
015	1137-0064-01	RUBBER CONE	£42.53	Add to
017	1137-0263-01	TUBE	£9.68	Add to
018	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
019	1137-0033-01	BLOCK	£3.41	Add to
020	1137-0033-02	BLOCK	£3.41	Add to
021	1137-0260-01	LINK ASSEMBLY A	£65.69	Add to
022	1137-0261-01	LINK ASSEMBLY B	£67.05	Add to
023	1134-4160-01	SEAT SPRING	£24.95	Add to
024	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
025	1137-0057-01	SEAT BRACKET ASSEMBLY [YELLOW]	£122.18	Add to
026	1134-6461-01	REAR PLATE	£34.35	Add to
028	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
029	1134-4117-01	BRACKET	£32.99	Add to
030	1134-1565-08	SPACER	£9.94	Add to
031	387800039/0	FRONT FRAME ASSEMBLY [4WD]	£933.72	Add to
032	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
033	9501-0504-01	GREASE NIPPLE M6	£3.69	Add to
034	9595-0262-00	LOCATING PIN	£2.06	Add to
035	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
038	9547-0001-00	BEARING	£24.95	Add to
039	1134-5705-01	SPACER	£19.36	Add to
040	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
041	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
042	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
044	1134-5988-01	CENTRE SHAFT	£22.76	Add to
045	1134-6586-01	FLOOR PLATE	£170.61	Add to
046	9403-0048-70	COVER PLUG	£9.68	Add to
047	1134-4117-01	BRACKET	£32.99	Add to
048	1134-2684-01	BUSH	£7.10	Add to
051	387256055/0	LIFT LEVER ASSEMBLY	£94.31	Add to
053	1134-4938-01	LIFT PEDAL	£24.95	Add to
054	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
055	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
056	4231-0013-00	SPRING	£8.87	Add to
057	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
058	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
059	9945-0816-16	SCREW M8 X 16	£2.54	Add to
060	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
061	387457003/0	REAR BUMPER	£231.93	Add to
062	1134-4242-01	SPACER WASHER	£4.78	Add to
063	9665-0002-00	BOWL WASHER	£2.61	Add to
064	1134-4100-01	PLUG	£4.78	Add to
066	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
067	1134-5512-01	TOWING PLATE	£20.72	Add to
068	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
