Pole Hedge Trimmer

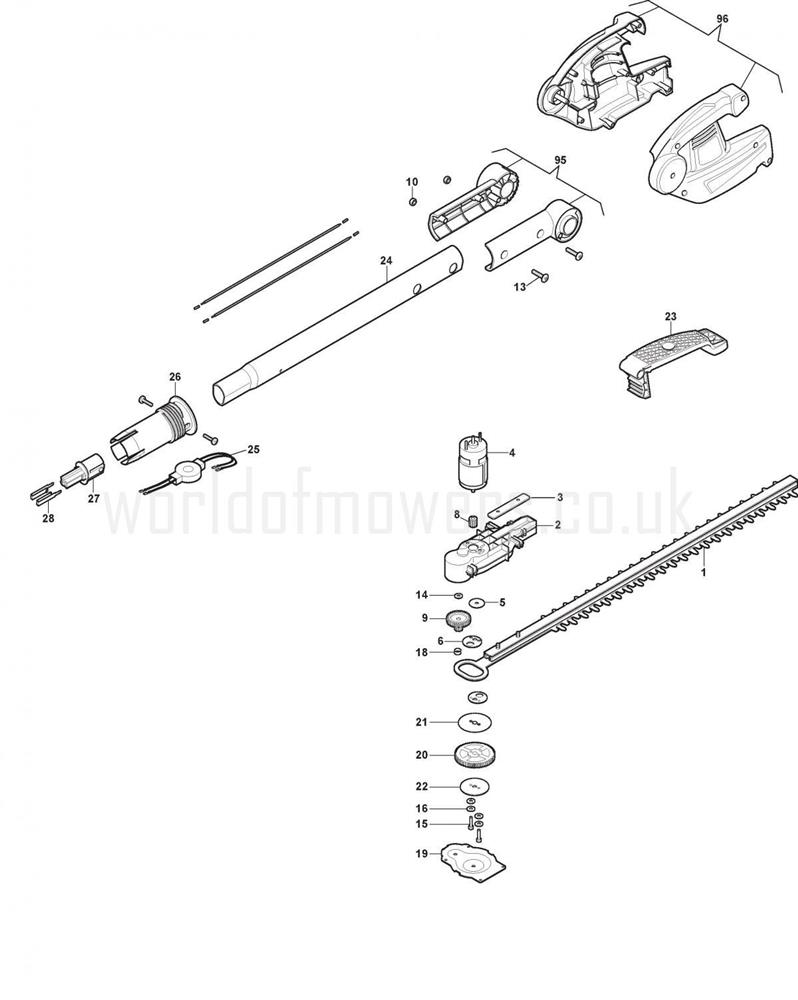

Pole Hedge Trimmer assembly details for Stiga SMT 24 AE (UK) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118810529/0BLADE ASSEMBLY£72.73 Add to
002118810563/0HousingN/A POA
003118803281/0CLAMP£3.49 Add to
004118810564/0MOTOR 24V£27.33 Add to
005118810504/0GasketN/A POA
006118810533/0ECCENTRIC BLOCK£2.18 Add to
008118810503/0PINION£1.91 Add to
009118810531/0DUPLEX GEAR£7.10 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
013112728721/0SCREW M6 x 30£1.91 Add to
014118810505/0GasketN/A POA
015118810530/0PinN/A POA
016118810532/0WASHER£1.83 Add to
018118803257/0BUSH£2.00 Add to
019118810506/0Gear case coverN/A POA
020118810501/0BIG GEAR£10.88 Add to
021118803278/0ISOLATE PLATE£1.79 Add to
022118810535/0BIG GASKET£2.18 Add to
023118810554/0ROTATION HANDLE£6.55 Add to
024118803395/0ALUMINIUM TUBE£13.80 Add to
025118810523/0INDUCTANCE£7.36 Add to
027118803309/0MALE CONNECTOR£1.79 Add to
028118803262/1TERMINAL£2.00 Add to
043118804597/0BLADE GUARD HT 24V DELUXE£7.10 Add to
095118810656/0TURN COMPONENT ASSEMBLY [YELLOW] (OBSOLETE) (OBSOLETE)N/A
096118810658/0HEAD HOUSING ASSEMBLY [YELLOW]£12.55 Add to
