Pole Pruner

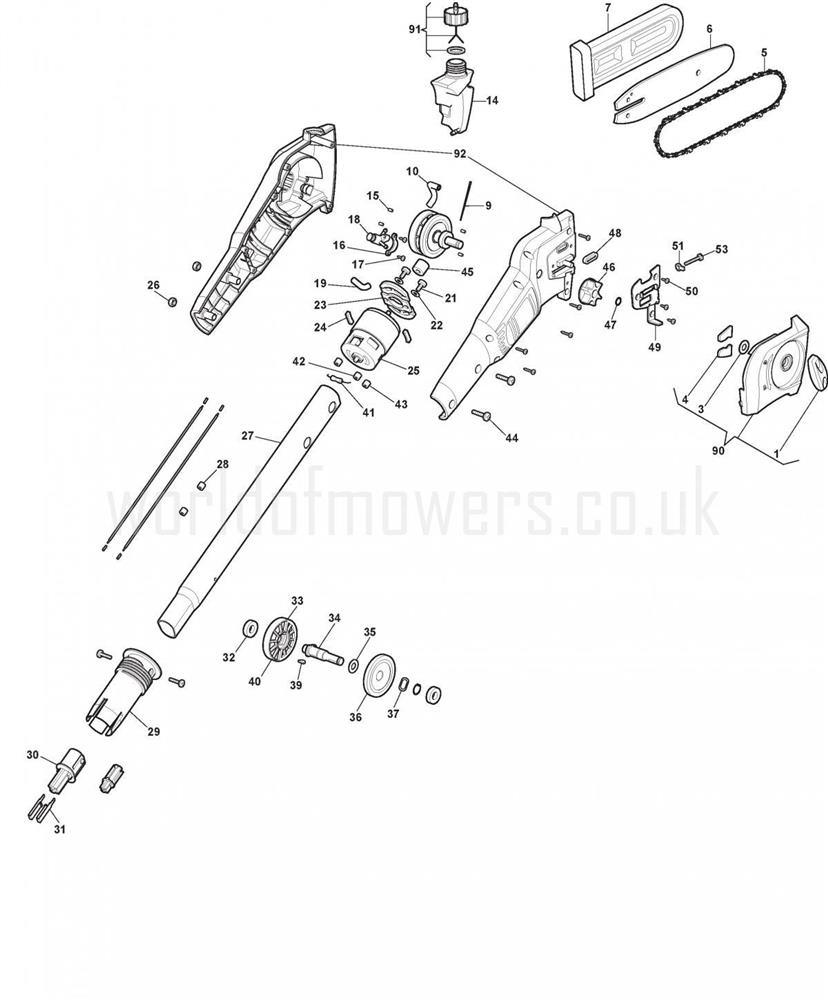

Pole Pruner assembly details for Stiga SMT 24 AE (UK) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803816/0KNOB [SILVER GREY]£3.69 Add to
003118804147/0WASHER£1.58 Add to
004118804155/0STEEL BLOCK£1.79 Add to
0051519-9160-01CHAIN 91VG-33E£16.54 Add to
006118804540/0GUIDE BAR 8"-3/8"£25.52 Add to
007323085000/0CHAIN COVER 270£21.67 Add to
009118810688/0ClampN/A POA
010118803328/0INPUT OIL TUBE£2.00 Add to
014118803316/0OIL TANK£3.00 Add to
015118804154/0NEEDLE BEARING RUBBER£1.58 Add to
016118803436/0Clamp£4.19 Add to
017112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
018118803375/0OIL PUMP ASSEMBLY£6.23 Add to
019118810637/0Oil HoseN/A POA
021112727790/0CHEESE-HEAD SCREW M5 x 10£2.06 Add to
022118810573/0GasketN/A POA
023118803357/0MOTOR FIXED BOARD (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
024118804152/0ANTI-VIBRATION RUBBER£1.79 Add to
025118810599/0MOTOR 24V£40.15 Add to
026112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
027118803395/0ALUMINIUM TUBE£13.80 Add to
028118804158/0CIRCULAR SPACER£4.10 Add to
029118810557/0LOCKING JOINT£5.73 Add to
030118803309/0MALE CONNECTOR£1.79 Add to
031118803262/1TERMINAL£2.00 Add to
032118803246/0BEARING£2.18 Add to
033118804151/0CAM£4.10 Add to
034118803392/0Output shaft (OBSOLETE)N/A
035118810621/0GasketN/A POA
036118805005/0MOTOR ASSY POLE SAW MT 24V£87.85 Add to
037118804146/0WAVE WASHER-NLA£1.58 Add to
039118804601/0WOODRUFF KEY 3 x 3.7 x 10£1.79 Add to
041118820505/0CapacitorN/A POA
042118810602/0RING£3.64 Add to
043118810401/0Heat shrinkable tube 13cmN/A POA
044112728721/0SCREW M6 x 30£1.91 Add to
045118803249/0SMALL GEAR (OBSOLETE) (OBSOLETE)N/A
046118810453/0SPROCKET£3.89 Add to
047112608500/0CIRCLIP D=10£1.79 Add to
048118804153/0WASHER£1.58 Add to
049118803272/0CHAIN BAR PLATE£3.15 Add to
050118804602/0ScrewN/A POA
051118803398/0TENSION SCREW£1.79 Add to
053118803394/0TENSION BOLT (OBSOLETE) (OBSOLETE)N/A
090118810696/0SIDE COVER ASSEMBLY [GREY]£7.50 Add to
091118810697/0OIL TANK CAP [GREY]£2.47 Add to
092118804603/0Housing AssyN/A POA
