Body Work

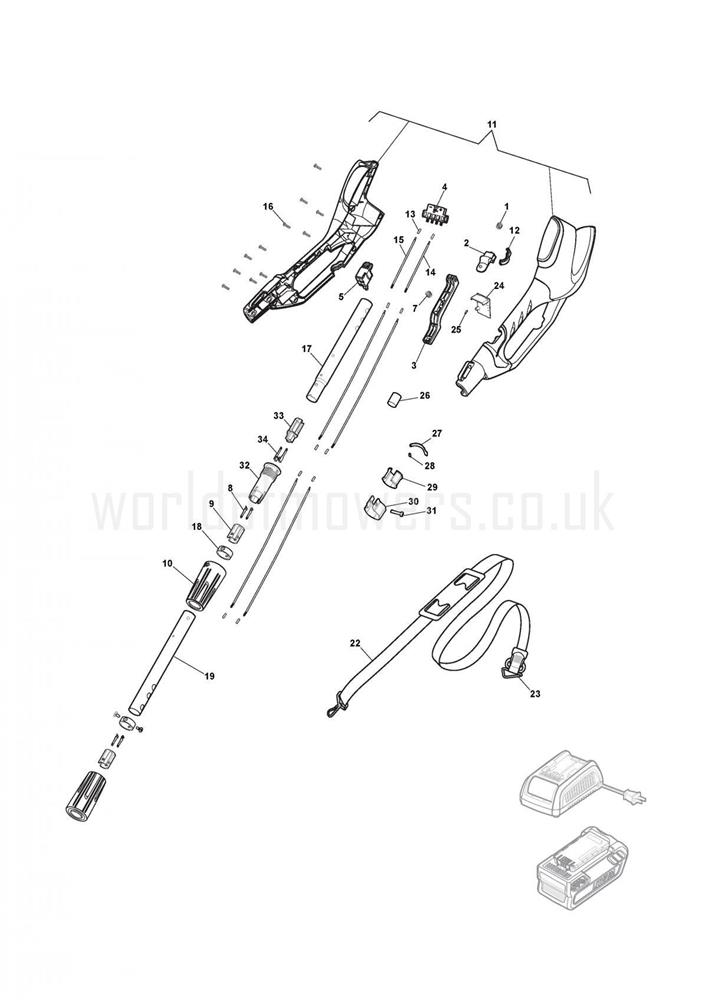

Body Work assembly details for Stiga SMT 48 AE 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803228/0SELF-LOCK SPRING£1.79 Add to
002118803442/0SELF-LOCK BUTTON [YELLOW]£1.79 Add to
003118803461/0SWITCH TRIGGER£2.32 Add to
004118803304/0INSERT BLOCK£7.63 Add to
005118803472/1MICROSWITCH (OBSOLETE) (OBSOLETE)N/A
007118803475/0Spring£4.01 Add to
008118803268/0BATTERY CONNECTER£2.00 Add to
009118805009/0HANDLE JOINT KIT MT 24V-48V£18.27 Add to
010118803437/0LOCKING CAP [GREY]£6.14 Add to
011118810450/0HANDLE ASSEMBLY£35.91 Add to
012118804173/0RETAINING PLATE [GREY]£1.83 Add to
013118804114/0HEAT SHRINKABLE TUBE£2.47 Add to
014118804143/0ELECTRIC CABLE - POSITIVE£9.07 Add to
015118804144/0ELECTRIC CABLE - NEGATIVE£7.71 Add to
016112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
017118804166/0TRANSMISSION TUBE£16.87 Add to
018118805009/0HANDLE JOINT KIT MT 24V-48V£18.27 Add to
019118804148/0TRANSMISSION TUBE£20.82 Add to
022118804145/0Straps componentsN/A POA
023118804165/0FAST TRIPPING CONNECTORS£6.58 Add to
024118804162/0PRINTED CIRCUIT BOARD£64.13 Add to
025118803335/0MAGNET RING£2.14 Add to
026118804175/0SPONGE£2.87 Add to
027118804891/0LOCKING LEVER£4.37 Add to
028118804892/0LOCKING INSERT£2.06 Add to
029118804156/0RUBBER MAT£3.24 Add to
030118804149/0SHOULDER STRAP TUBE LOCK£3.41 Add to
0312135130TORX SCREW M5 x 35£1.79 Add to
032118803431/0CLAMP [GREY]£7.10 Add to
033118803309/0MALE CONNECTOR£1.79 Add to
034118803262/1TERMINAL£2.00 Add to
