Engine

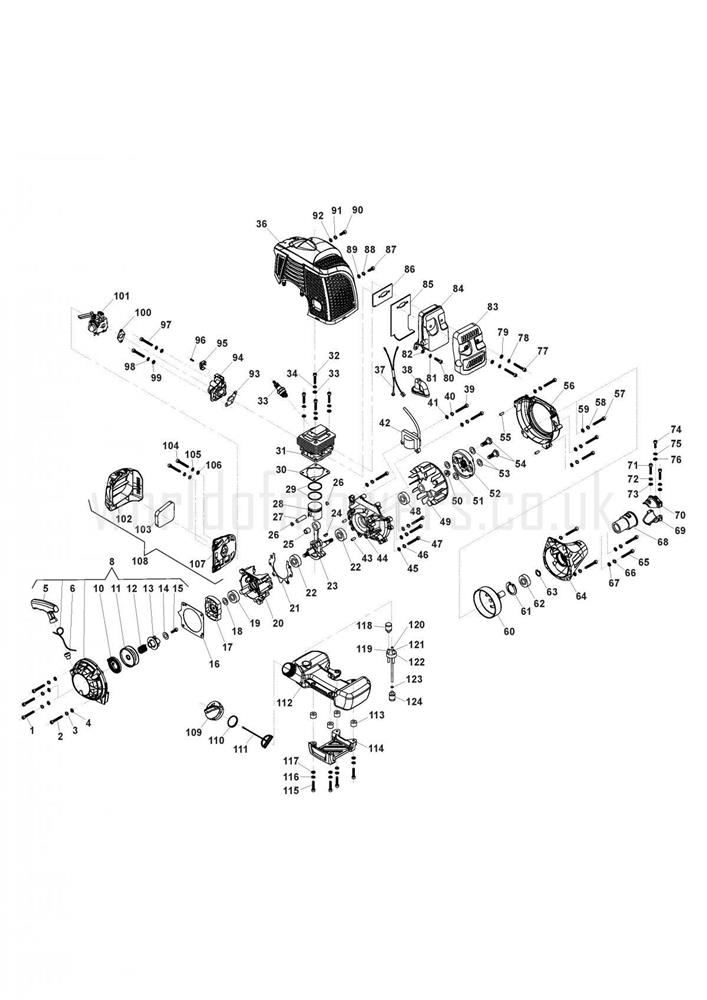

Engine assembly details for Stiga SB 520 D 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0012135110TORX SCREW M5 x 45£1.79 Add to
0022135110TORX SCREW M5 x 45£1.79 Add to
0042312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
005118803135/0RECOIL HANDLE [YELLOW]£9.15 Add to
006118803923/0EyeletN/A POA
008118803883/0START ASSEMBLY£31.66 Add to
010118803693/0STARTER SPRING£1.79 Add to
011118803710/0STARTER PULLEY£2.47 Add to
012118803694/0SPRING STARTER£1.79 Add to
013118803711/0RATCHET WHEEL£2.06 Add to
0146981425SCREW£3.64 Add to
0159699-0087-02WASHER 5.3 x 16 x 2£2.47 Add to
016118803859/0STARTER GASKET£2.87 Add to
017118803678/0STARTER REEL£4.42 Add to
0182312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
019118550599/0OIL SEAL 12 x 22 x 7£2.18 Add to
020118803682/0Left Crankcase AssyN/A POA
021118803683/0CRANKCASE GASKET£1.79 Add to
022118803824/0BearingN/A POA
023118803686/0CRANKSHAFT£24.95 Add to
0243151050FLYWHEEL KEY 3 x 5 x 12.65£6.14 Add to
025118803918/0BEARING£3.41 Add to
026118550590/0PISTON PIN CIRCLIP£1.79 Add to
027118803916/0PISTON PIN£2.18 Add to
028118803917/0PISTON£11.18 Add to
029118803915/0PISTON RING£3.89 Add to
030118803914/0CYLINDER GASKET£2.32 Add to
031118803913/0CYLINDER£45.57 Add to
0322135110TORX SCREW M5 x 45£1.79 Add to
0342312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0353210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
036118803876/0TOP HOUSING YELLOW£16.10 Add to
037118803691/0WireN/A POA
038118803882/0Spark Plug CoverN/A POA
0392135110TORX SCREW M5 x 45£1.79 Add to
0412312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
042118803690/0ELECTRONIC COIL£19.71 Add to
043118803823/0PinN/A POA
044118803681/0Right Crankcase AssyN/A POA
0452135110TORX SCREW M5 x 45£1.79 Add to
0472312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
048118803860/0OIL SEAL£3.15 Add to
049118803919/0MAGNET ROTOR£28.90 Add to
050122131750/0NUT M8£2.06 Add to
0512312080Washer£4.01 Add to
052118803679/0CLUTCH ASSEMBLY£5.60 Add to
053112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
054118803677/0ScrewN/A POA
055118803823/0PinN/A POA
056118803877/0FAN COVER£17.45 Add to
0572135110TORX SCREW M5 x 45£1.79 Add to
0592312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
060118803697/0CLUTCH DRUM£11.51 Add to
061118803831/0Snap RingN/A POA
062118803824/0BearingN/A POA
063118803832/0Snap RingN/A POA
064118803889/0CLTUCTH DRUM HOUSING GREY£22.91 Add to
0652135110TORX SCREW M5 x 45£1.79 Add to
0672312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
068118803920/0RUBBER-BUMP£3.69 Add to
069118803922/0RIGHT CLAMP£2.87 Add to
070118803921/0LEFT CLAMP£2.87 Add to
0712135110TORX SCREW M5 x 45£1.79 Add to
0732312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0742135110TORX SCREW M5 x 45£1.79 Add to
0762312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0772135110TORX SCREW M5 x 45£1.79 Add to
0792312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0802135110TORX SCREW M5 x 45£1.79 Add to
0822312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
083118803707/0Muffler GuardN/A POA
084118803688/0MUFFLER£10.65 Add to
085118803706/0MUFFLER GASKET£3.55 Add to
086118803676/0MUFFLER GASKET£1.79 Add to
0872135110TORX SCREW M5 x 45£1.79 Add to
0892312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0902135110TORX SCREW M5 x 45£1.79 Add to
0922312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
093118803675/0INTAKE MANIFOLD GASKET£2.06 Add to
094118803708/0INTAKE MANIFOLD£4.99 Add to
095118803704/0StampingN/A POA
096118803830/0ScrewN/A POA
0972135110TORX SCREW M5 x 45£1.79 Add to
0992312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
100118550587/0CARBURETTOR GASKET£1.79 Add to
101118803709/0CARURETTOR£28.68 Add to
102118803880/0AIR BOX COVER GREY£6.01 Add to
103118803881/0SPONGE£2.06 Add to
1042135110TORX SCREW M5 x 45£1.79 Add to
1062312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
107118803879/0AIR BOX BASE BLACK£6.01 Add to
108118803878/0AIR BOX ASSEMBLY£12.55 Add to
109118803886/0FUEL TANK COVER BLACK£4.82 Add to
110118803888/0RUBBER£1.58 Add to
111118803887/0ANTI-DROP PLATE£1.58 Add to
112118803885/0FUEL TANK£16.10 Add to
113118803712/0RUBBRE BUMP£1.50 Add to
114118803875/0FUEL TANK HOUSING£12.27 Add to
1152135110TORX SCREW M5 x 45£1.79 Add to
1172312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
118118800198/0BREATHER VALVE ASSEMBLY£5.46 Add to
119118803105/0OIL RETURN TUBE£2.74 Add to
120118803107/0FUEL TUBE£2.78 Add to
121118803105/0OIL RETURN TUBE£2.74 Add to
122118803106/0CLIP£2.47 Add to
123118803924/0FUEL TUBE CIRCLIP£1.79 Add to
124118800199/0FUEL FILTER£3.15 Add to
