Transmission

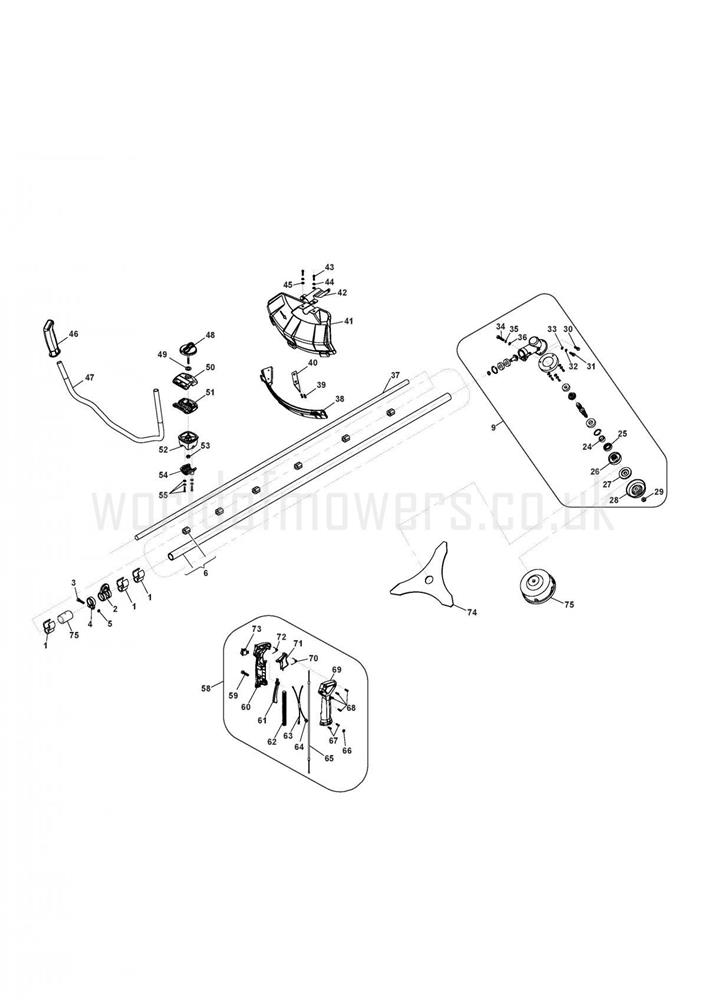

Transmission assembly details for Stiga SB 520 D 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802596/0WIRE BUCKLE£2.06 Add to
002118803862/0Harness clamp assemblyN/A POA
0036981434SCREW£3.64 Add to
004118803861/0CampN/A POA
0052432040NUT M5£1.79 Add to
006118803890/0STRAIGHT SHAFT ASSEMBLY£39.44 Add to
009118804850/0GEAR BOX ASSEMBLY£50.70 Add to
024118803848/0Ring NutN/A POA
025118803849/0SpacerN/A POA
026118804856/0BLADE RETAINER£4.52 Add to
027118803845/0WasherN/A POA
028118803847/0Bottom guardN/A POA
029118803828/0FLANGE NUT M10x1.25 LEFT£2.06 Add to
030118803827/0ScrewN/A POA
0316981144Screw£4.01 Add to
0332312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0346981262ScrewN/A POA
0362312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
037118804857/0DRIVE SHAFT£7.78 Add to
038118803724/0LOWER PROTECTION£5.73 Add to
039118803830/0ScrewN/A POA
040118803723/0LINE CUTTER£3.15 Add to
041118803725/0SAFETY GUARD COVER£12.96 Add to
042118803909/0CLAMP-GUARD£4.52 Add to
0436981262ScrewN/A POA
0452312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
046118803892/0RUBBER HANDLE£5.32 Add to
047118803891/0TRANSMISSION TUBE£11.46 Add to
048118803908/0KNOB BLACK£4.35 Add to
049112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
050118803901/0HANDLE COVER£5.61 Add to
051118803902/0HANDLE MIDDLE COVER£5.19 Add to
052118803903/0HANDLE SUPPORT£5.46 Add to
0532432040NUT M5£1.79 Add to
054118803904/0SUPPORTING PLATE£2.87 Add to
0556981263Screw set£4.01 Add to
058118803893/0CONTROL HANDLE ASSEMBLY£35.58 Add to
0596981435SCREW£1.79 Add to
060118803895/0LEFT HANDLE£16.36 Add to
061118803898/0Lock triggerN/A POA
062118803900/0Jacket TubeN/A POA
063118803906/0Wire cableN/A POA
064118803907/0Wire cableN/A POA
065118803905/0THROTTLE CABLE ASSEMBLY£7.92 Add to
0662432040NUT M5£1.79 Add to
067118803830/0ScrewN/A POA
068118803830/0ScrewN/A POA
069118803894/0RIGHT HANDLE£16.36 Add to
070118803897/0SpringN/A POA
071118803896/0TRIGGER£2.06 Add to
072118803899/0SpringN/A POA
073118800202/0EXTINCTION SWITCH£2.18 Add to
074118802316/0BLADE£16.36 Add to
075118804855/0SLEEVE 28£3.55 Add to
