Engine

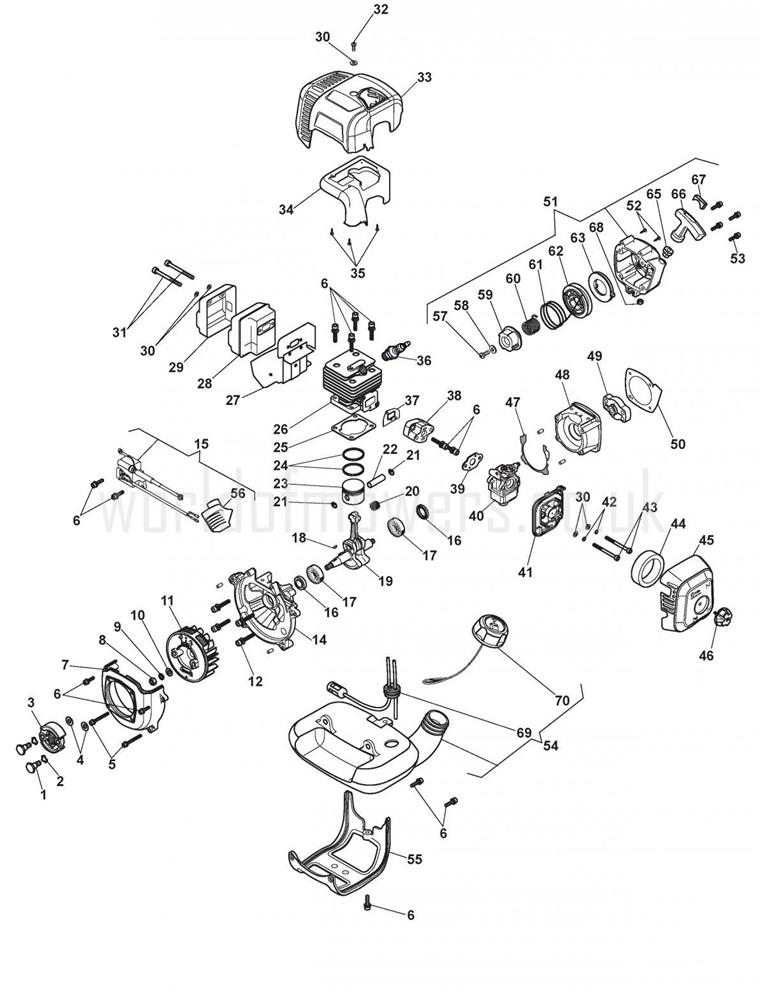

Engine assembly details for Stiga SBC 226 J 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804038/0SCREW£1.50 Add to
002118804045/0WASHER£1.58 Add to
003118802113/0CLUTCH£11.18 Add to
0042312010FLAT WASHER 6.4 x 12 x 1.6£1.79 Add to
0052135120SCREW TX M5 x 40£1.79 Add to
0062135030TORX SCREW M5 x 20£1.79 Add to
007118803161/0FLYWHEEL COVER£10.77 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
009112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
0106981128WASHER£3.64 Add to
011118802073/0FLYWHEEL£20.45 Add to
0122135050TORX SCREW M5 x 30£1.79 Add to
014118802078/0FRONT-HALF CRANKCASE£16.10 Add to
015118803162/0IGNITION COIL£31.99 Add to
016118801188/0OIL SEAL 12 x 22 x 7£1.79 Add to
017119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
018123072002/0FLYWHEEL KEY£1.79 Add to
019118802066/0CRANKSHAFT£37.33 Add to
020118803164/0NEEDLE BEARING£3.64 Add to
021118802084/0PISTON PIN CIRCLIP£1.79 Add to
022118802081/0PISTON PIN£1.79 Add to
023118802076/0PISTON£8.37 Add to
024118802077/0PISTON RING£2.78 Add to
025118803165/0CYLINDER GASKET£2.00 Add to
026118802074/0CYLINDER£40.95 Add to
027118803166/0MUFFLER GASKET£5.73 Add to
028118803167/0MUFFLER£36.92 Add to
029118803168/0MUFFLER GUARD£5.32 Add to
030112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0312122210SCREW TCCI M5 x 62 (OBSOLETE)N/A
032112727790/0CHEESE-HEAD SCREW M5 x 10£2.06 Add to
033322055254/0CYLINDER COVER [YELLOW]£15.13 Add to
034118803169/0AIR FILTER COVER (OBSOLETE) (OBSOLETE)N/A
0351126-1049-01SCREW M3 x 10£1.60 Add to
0363210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
037118803170/0INTAKE MANIFOLD GASKET£1.79 Add to
038118802086/0INTAKE MANIFOLD£2.78 Add to
039118803171/0CARBURETTOR GASKET£1.79 Add to
040118803172/0CARBURETTOR 26cc£44.02 Add to
041118803173/0AIR FILTER BASE£1.79 Add to
0432135250TORX SCREW M5 x 55 (OBSOLETE) (OBSOLETE)N/A
044118801526/0AIR FILTER£2.06 Add to
045322055255/0AIR FILTER COVER [YELLOW]£4.66 Add to
046118803174/0AIR FILTER KNOB [GREY]£3.00 Add to
047118803175/0CRANKCASE GASKET£1.79 Add to
048118802079/0BACK-HALF CRANKCASE£13.77 Add to
049118802069/0STARTER CUP£4.52 Add to
050118803176/0GASKET£1.58 Add to
051118803177/0RECOIL ASSEMBLY [GREY]£20.18 Add to
052112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
0536981149SCREW£4.01 Add to
054118803189/0FUEL TANK ASSEMBLY£15.69 Add to
055118803191/0FUEL TANK SUPPORT [GREY]£7.10 Add to
056118803163/0SPARK PLUG CAP£6.23 Add to
0572135180TORX SCREW M5 x 12£1.79 Add to
0582312150WASHER 5.5 x 15 x 1.5£1.79 Add to
059118803179/0STARTER HUB£2.32 Add to
060118803180/0STARTER SPRING£2.59 Add to
061118803181/0RECOIL ROPE£3.00 Add to
062118803182/0RECOIL PULLEY£3.40 Add to
063118803183/0RECOIL SPRING£6.01 Add to
066118803186/0STARTER HANDLE£2.47 Add to
068112291000/0HEXAGON NUT M5£2.06 Add to
069118804005/0FUEL PIPE SET£10.59 Add to
070322735152/1FUEL TANK CAP£3.72 Add to
