Transmission

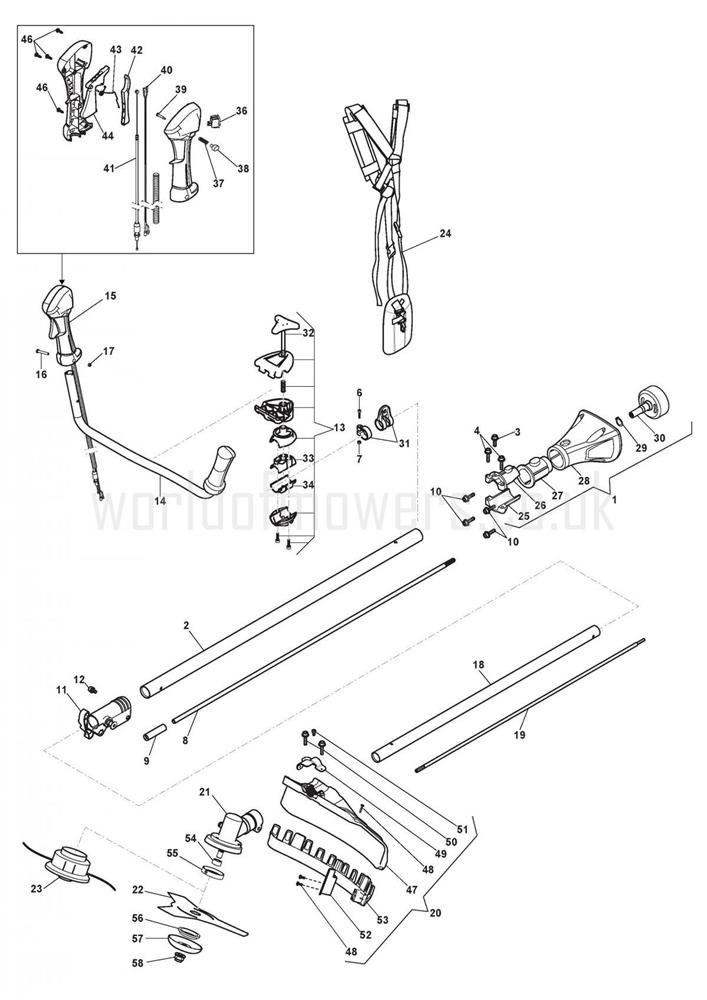

Transmission assembly details for Stiga SBC 226 JD 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803136/0TRANSMISSION HUB ASSEMBLY£36.69 Add to
002118803207/0TRANSMISSION PIPE DUPLEX 26cc£14.05 Add to
0032135040TORX SCREW M5 x 18£1.79 Add to
0042132550SCREW TCCE M5 x 25£1.79 Add to
0062135030TORX SCREW M5 x 20£1.79 Add to
007112291000/0HEXAGON NUT M5£2.06 Add to
008118803141/0LONG TRANSMISSION DRIVE SHAFT 26cc£13.91 Add to
009118803142/0SHAFT CONNECTOR£2.18 Add to
0102135150TORX SCREW M6 x 23£1.79 Add to
011118802099/0SHAFT CONNECTOR ASSEMBLY£17.72 Add to
0122135180TORX SCREW M5 x 12£1.79 Add to
013118803209/0ADJUSTER SUPPORT KIT£17.35 Add to
014118803210/0LEFT HANDGRIP£16.38 Add to
015118803211/0RIGHT HANDGRIP ASSY - STIGA YELLOW£25.44 Add to
0162135120SCREW TX M5 x 40£1.79 Add to
017112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
018118803195/1BC 26cc SHORT TRANSMISSION PIPE ASSY£16.63 Add to
019118803197/0SHORT TRANSMISSION DRIVE SHAFT 26cc£27.11 Add to
020118803198/0SAFETY COVER ASSEMBLY£29.37 Add to
021118801184/0GEAR CASE ASSEMBLY£67.05 Add to
022118801125/0BLADE 3 TEETH 1.4 x 255mm£9.85 Add to
023118801124/0NYLON HEAD ASSEMBLY 2.4 x 5M£13.17 Add to
024118804015/1DOUBLE HARNESS£39.80 Add to
026118803138/0UPPER SUPPORT PLATE£4.11 Add to
027118803139/0SHAFT CONNECTOR£3.69 Add to
028322055257/0TRANSMISSION HUB£14.34 Add to
029112609200/0CIRCLIP D=15£2.06 Add to
030118802094/0CLUTCH DRUM£13.77 Add to
031118801182/0HARNESS SUPPORT SET£2.00 Add to
032118804062/0KNOB£2.87 Add to
033118804017/0HANDLE SUPPORT£20.90 Add to
034118804029/0ANTI VIBRATION RUBBER-LOWER£2.07 Add to
036118803213/0ON/OFF SWITCH£2.06 Add to
037118803214/0Spring£5.85 Add to
038118803215/0Button£5.75 Add to
039118803216/0Pin£5.21 Add to
040118803217/0STOP CABLE 26cc£2.06 Add to
041118803218/0THROTTLE CABLE 26cc£8.14 Add to
042118803219/0SAFETY LEVER£1.79 Add to
043118803220/0SAFETY SPRING£2.00 Add to
044118803221/0THROTTLE TRIGGER£1.79 Add to
046112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
047118803198/0SAFETY COVER ASSEMBLY£29.37 Add to
0482123050SCREW TC 4.2 x 16£2.00 Add to
049118804054/0PLASTIC PROTECTION GUARD D26£2.87 Add to
050112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
0512122260SCREW TCCI 5 x 10£3.64 Add to
052118804056/0LINE CUTTER BLADE£2.18 Add to
053118803954/1SAFETY COVER ASSY£25.35 Add to
054118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
055118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
056118803205/0LOWER BLADE WASHER£3.89 Add to
057118803206/0GEAR CASE DUST COVER£3.83 Add to
058112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
