Transmission

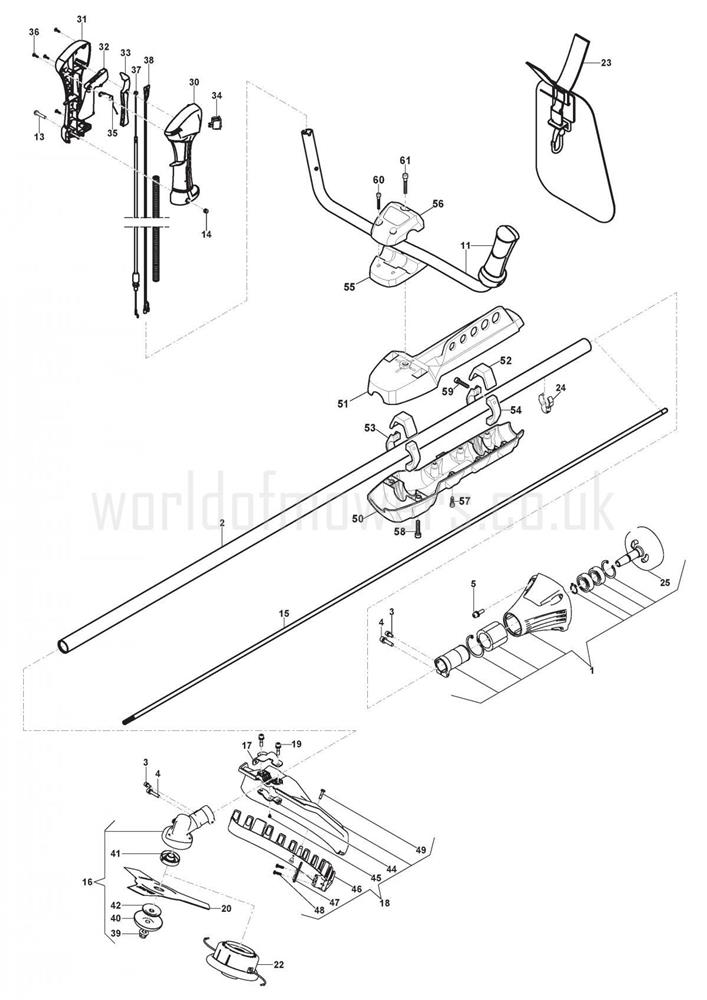

Transmission assembly details for Stiga SBC 242 D 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804002/0TRANSMISSION SUPPORT D=28£42.53 Add to
002118803958/0TRANSMISSION PIPE D=28£26.07 Add to
0036981145SCREW (OBSOLETE)N/A
004112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
005112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
011118803210/0LEFT HANDGRIP£16.38 Add to
013123878017/0SCREW£1.79 Add to
014112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
015118804042/0TRANSMISSION SHAFT£37.25 Add to
016118803999/0GEAR CASE ASSEMBLY D=28£68.42 Add to
017118804052/0GUARD PLATE D28£3.15 Add to
018118803954/0SAFETY COVER ASSEMBLY£19.85 Add to
0192132180SCREW TCCE M6 x 25£1.79 Add to
020118801125/0BLADE 3 TEETH 1.4 x 255mm£9.85 Add to
0221911-9218-01NYLON HEAD [M10-FEMALE LH-THREAD] Ø130£34.97 Add to
023118804015/1DOUBLE HARNESS£39.80 Add to
024118804066/0THROTTLE LINE CLAMP£1.50 Add to
025118804037/0CLUTCH DRUM£14.45 Add to
030118803971/0LEFT HANDGRIP [YELLOW]£4.42 Add to
031118803965/0RIGHT HANDGRIP [YELLOW]£4.42 Add to
032118803221/0THROTTLE TRIGGER£1.79 Add to
033118803219/0SAFETY LEVER£1.79 Add to
034118803213/0ON/OFF SWITCH£2.06 Add to
035118803220/0SAFETY SPRING£2.00 Add to
036112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
037118803986/0THROTTLE CABLE£4.43 Add to
038118803217/0STOP CABLE 26cc£2.06 Add to
0392452090LEFT SELF-LOCKING NUT£5.73 Add to
040118804050/0STABILIZER£3.69 Add to
041118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
042118804044/0LOWER RING£3.89 Add to
044118804058/0LOWER PROTECTION GUARD PLATE£2.14 Add to
045112727815/0SCREW 8P x 3/8£1.79 Add to
046118803954/1SAFETY COVER ASSY£25.35 Add to
047118804056/0LINE CUTTER BLADE£2.18 Add to
0486981149SCREW£4.01 Add to
049112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
050118801357/0LOWER HARNESS CLAMP£14.34 Add to
051118801353/1UPPER HARNESS CLAMP£19.54 Add to
052118801358/0SHOCK ABSORBER£2.06 Add to
053118801359/0LEFT BRACKET£7.97 Add to
054118801360/0RIGHT BRACKET£7.97 Add to
055118801356/1LOWER HANDLE CLAMP£15.27 Add to
056118801355/0UPPER HANDLE CLAMP£13.64 Add to
057112728526/0SELF-TAP SCREW 4 x 30£3.64 Add to
0582135030TORX SCREW M5 x 20£1.79 Add to
059112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
0602135030TORX SCREW M5 x 20£1.79 Add to
061112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
