Engine

Engine assembly details for Stiga SBC 253 F 2017 model

Parts list

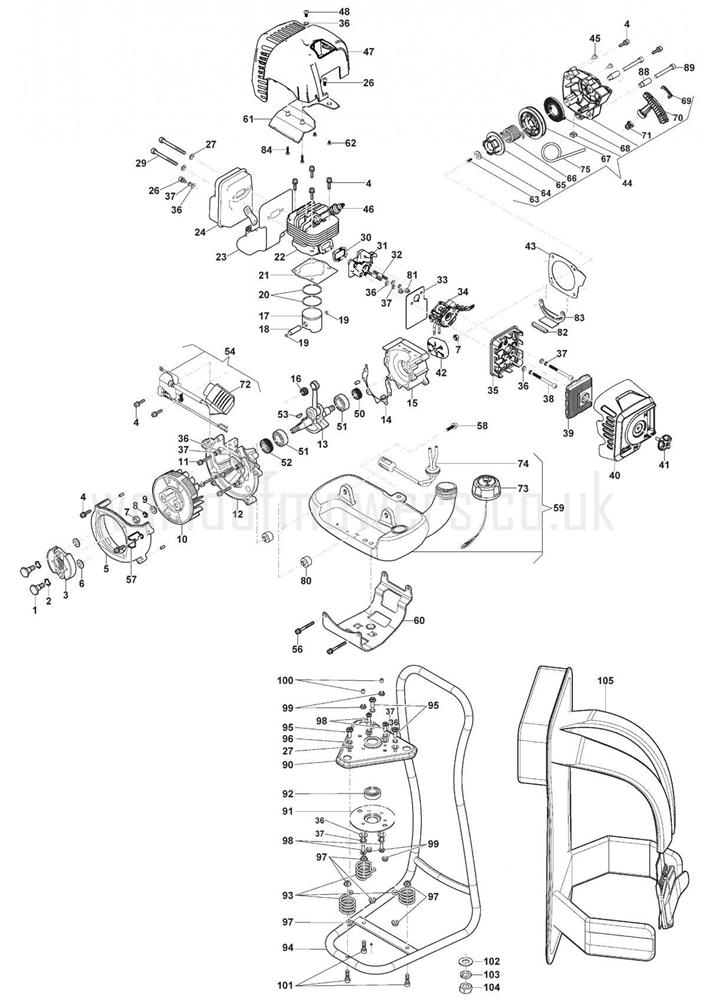

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804038/0SCREW£1.50 Add to
002118804045/0WASHER£1.58 Add to
003118804000/0CLUTCH ASSEMBLY£11.73 Add to
004112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
005118804033/0TRANSMISSION SUPPORT CASE£12.96 Add to
006118804046/0WASHER£1.58 Add to
007112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
008112369500/0SPRING WASHER D=8£1.79 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
010118804013/0FLYWHEEL£24.18 Add to
0119950-0530-16SCREW£3.64 Add to
012118804569/0FRONT-HALF CRANKCASE£17.18 Add to
013118803990/0CRANKSHAFT£42.35 Add to
014118804079/0CRANKCASE GASKET£2.00 Add to
015118804570/0BACK-HALF CRANKCASE£17.26 Add to
016118804019/0NEEDLE BEARING 10x14x15.5£3.83 Add to
017118804036/0PISTON 51.7cc£9.96 Add to
018118804040/0PISTON PIN£1.91 Add to
019118804049/0PISTON PIN WASHER£1.58 Add to
020118804023/0PISTON RING 51.7cc£3.55 Add to
021118804080/0CYLINDER GASKET£1.91 Add to
022118804035/0CYLINDER 51.7cc£44.64 Add to
023118804621/0MUFFLER GASKET£5.60 Add to
024118804622/0MUFFLER£28.90 Add to
0262135040TORX SCREW M5 x 18£1.79 Add to
027112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
029118801180/0M6 x 60 HEX SCREW£1.79 Add to
030118804081/0INLET PIPE GASKET£2.06 Add to
031118804064/0INTAKE MANIFOLD£3.69 Add to
032118804549/0DOWEL SCREW M5 x 38£1.58 Add to
033118804083/0CARBURETTOR GASKET£2.06 Add to
034118804009/0CARBURETTOR£47.48 Add to
035118804063/0AIR FILTER BASE£2.06 Add to
036112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
0382135250TORX SCREW M5 x 55 (OBSOLETE) (OBSOLETE)N/A
039118804547/0PAPER AIR FILTER£7.81 Add to
040118803968/0AIR FILTER COVER [YELLOW]£5.37 Add to
041118803174/0AIR FILTER KNOB [GREY]£3.00 Add to
042118803996/0STARTER CUP£4.78 Add to
043118804051/0STARTER GASKET£2.18 Add to
044118803994/0RECOIL ASSEMBLY c/w YELLOW INSERT£22.52 Add to
045123878121/0SCREW 4.2 x 13£1.79 Add to
0463210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
047118803970/0CYLINDER COVER [YELLOW]£15.54 Add to
048112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
050118801188/0OIL SEAL 12 x 22 x 7£1.79 Add to
0513112040BEARING 547056LV 6202 C3£15.00 Add to
052118804020/0SEAL RING£1.91 Add to
053123072002/0FLYWHEEL KEY£1.79 Add to
054118804864/0IGNITION COIL£32.12 Add to
056118804430/0SCREW M6 × 45£3.64 Add to
057118804055/0THROTTLE LINE CLAMP£1.58 Add to
058112760475/0SCREW TC M5 x 20£2.06 Add to
059118804004/0FUEL TANK ASSEMBLY£17.34 Add to
060118804572/0FUEL TANK SUPPORT£9.54 Add to
061118804087/0AIR FILTER GUIDE£5.32 Add to
062112727815/0SCREW 8P x 3/8£1.79 Add to
063112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
064112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
065118803975/0STARTER CAM£3.69 Add to
066118804061/0SPRING£2.87 Add to
067118803976/0STARTER PULLEY£7.10 Add to
068118804060/0STARTER SPRING£6.42 Add to
069118804069/0STARTER HANDLE INSERT£1.79 Add to
070118803984/0STARTER HANDLE£2.32 Add to
071118804068/0ROPE GUIDE£4.10 Add to
072118803163/0SPARK PLUG CAP£6.23 Add to
073322735152/1FUEL TANK CAP£3.72 Add to
074118804005/0FUEL PIPE SET£10.59 Add to
075118803181/0RECOIL ROPE£3.00 Add to
080118804548/0GROMMET£1.58 Add to
081112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
082118804550/0RUBBER SLEEVE£1.58 Add to
083118804551/0FUEL TANK PRESSING PLATE£2.18 Add to
084112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
088118804571/0BUSH£1.58 Add to
089118801180/0M6 x 60 HEX SCREW£1.79 Add to
090118804573/0ENGINE BASEPLATE£14.05 Add to
091118804574/0BEARING COVER PLATE£4.52 Add to
092119216048/0BEARING£18.27 Add to
093118804575/0ENGINE SUPPORT SPRING£2.18 Add to
094118804576/0BACK PAD£34.64 Add to
095112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
096112582100/0LOCK WASHER M6£2.06 Add to
097112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
098112727795/0CHEESE-HEAD SCREW M5 X 20£1.79 Add to
0992670280Nut£4.01 Add to
100118804577/0M5 THREAD BUSH£1.79 Add to
1012132180SCREW TCCE M6 x 25£1.79 Add to
102112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
103112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
104112295200/0HEXAGON NUT M10£1.79 Add to
105118804578/0BACK BAG SET£48.18 Add to
